Airtec Motorsport Rear Wing for Toyota Yaris GR
- Regular price
- £649.00
- Sale price
- £649.00
- Regular price
-
TECHNICAL DATA

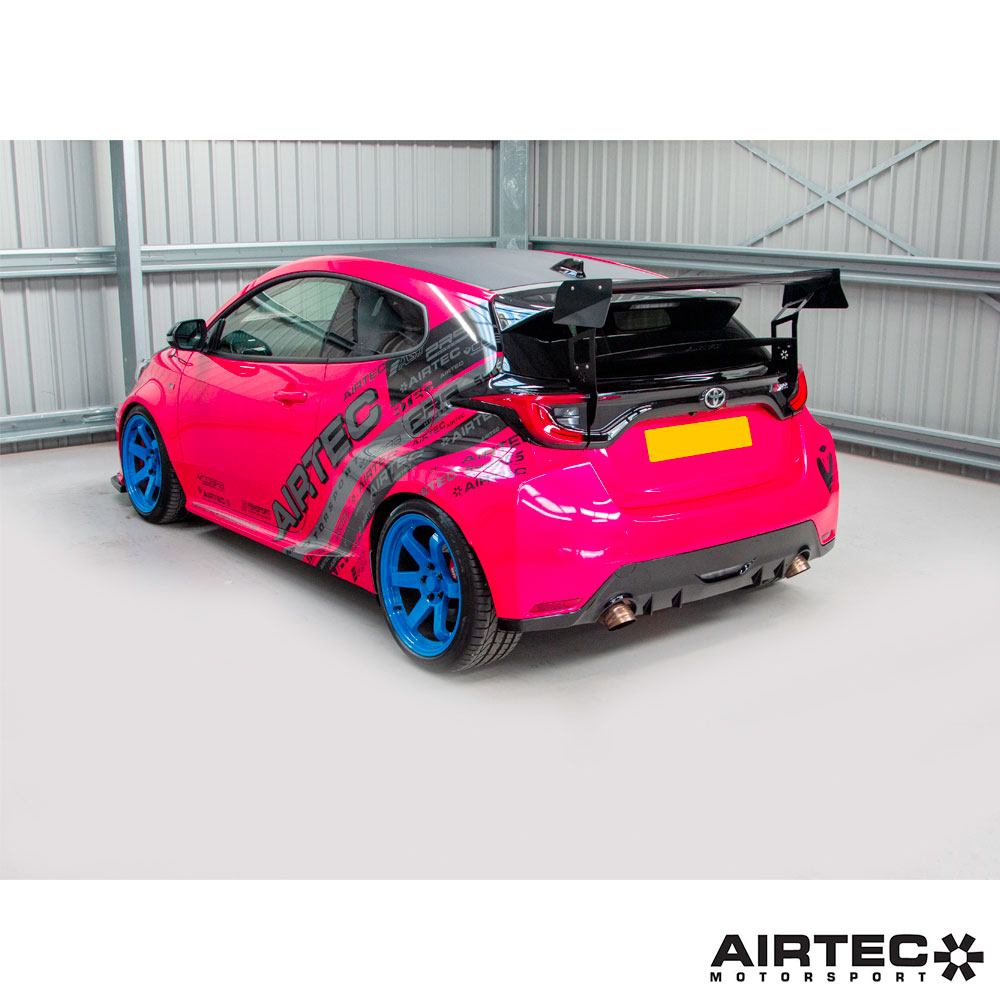

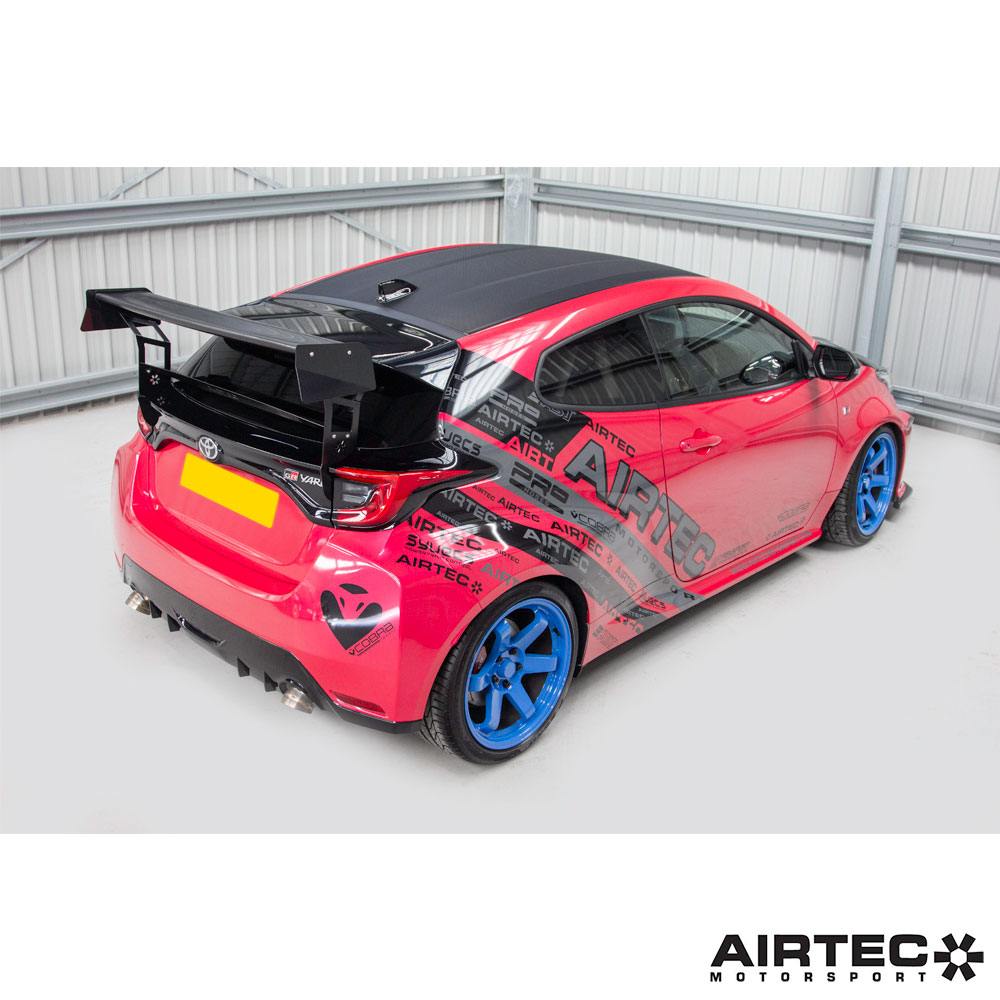

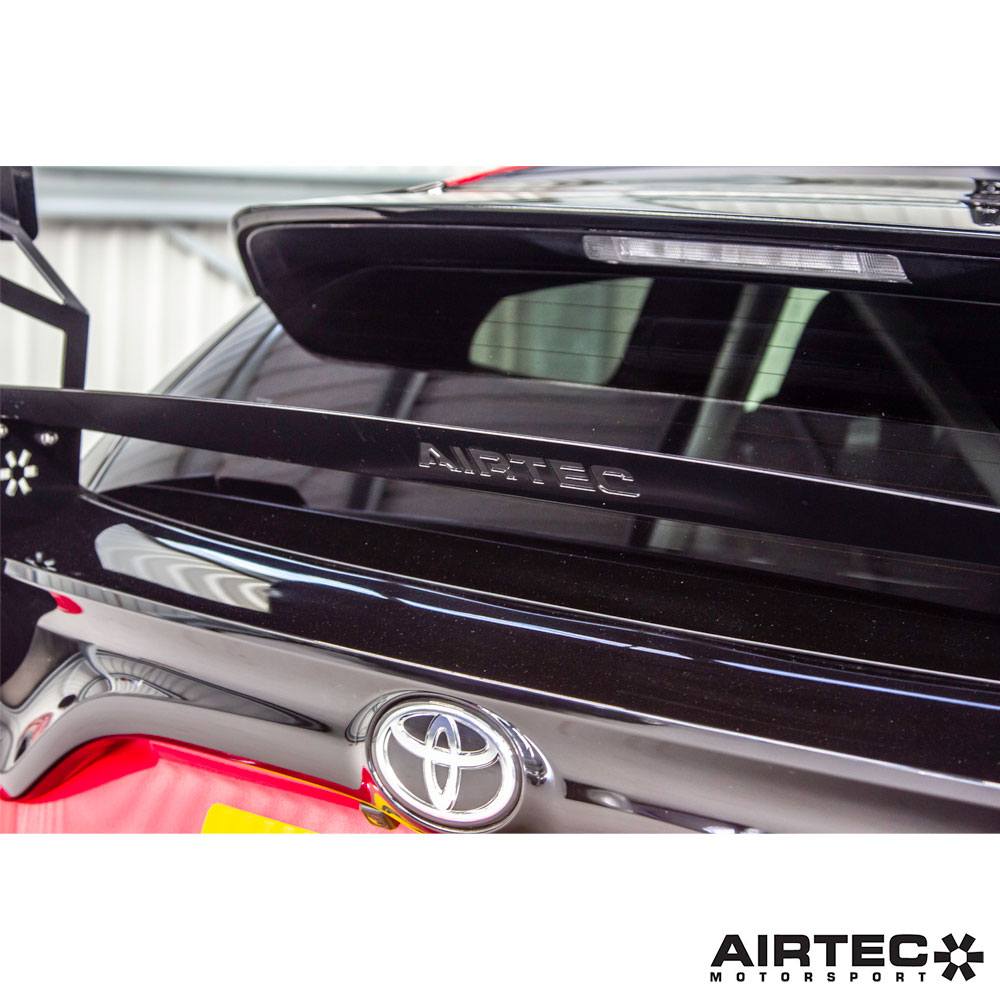

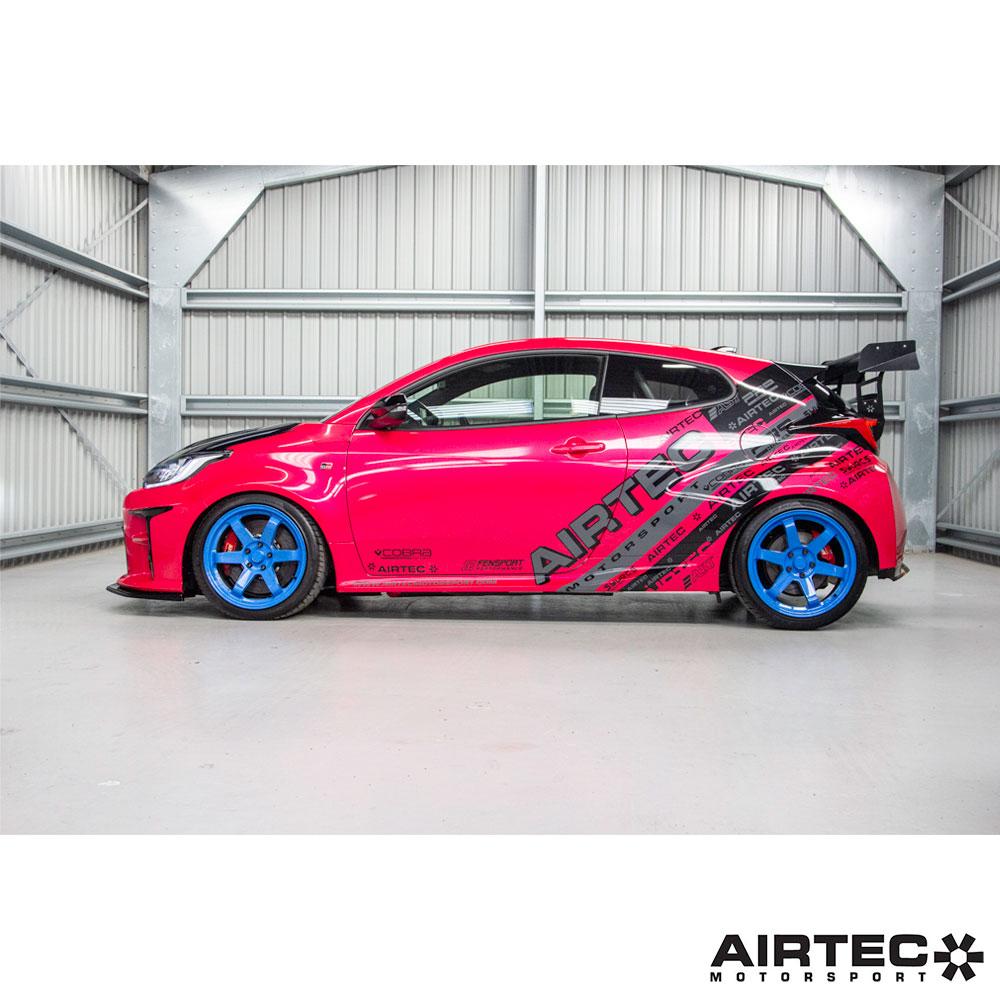

Following an extensive development process by our in-house design engineer team, AIRTEC Motorsport is proud to launch our new rear wing set up for the Toyota Yaris GR, suited to track or fast road use.

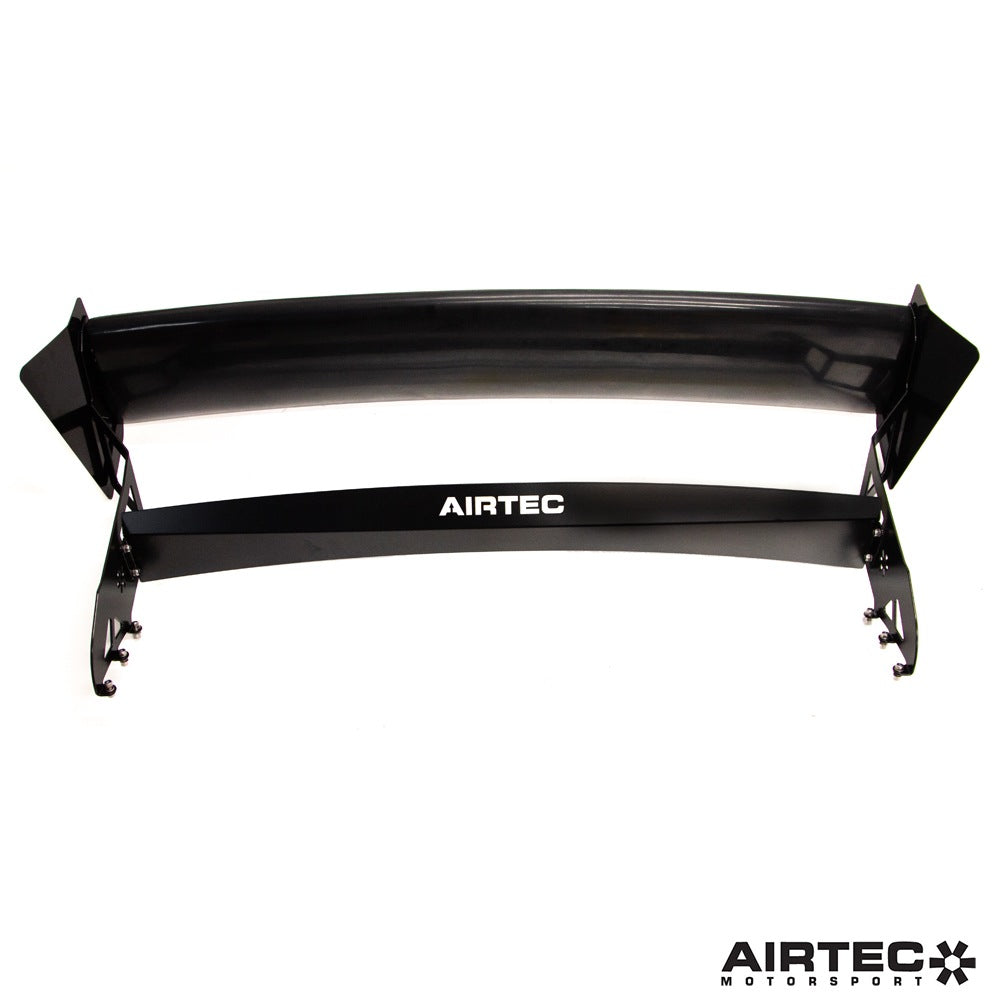

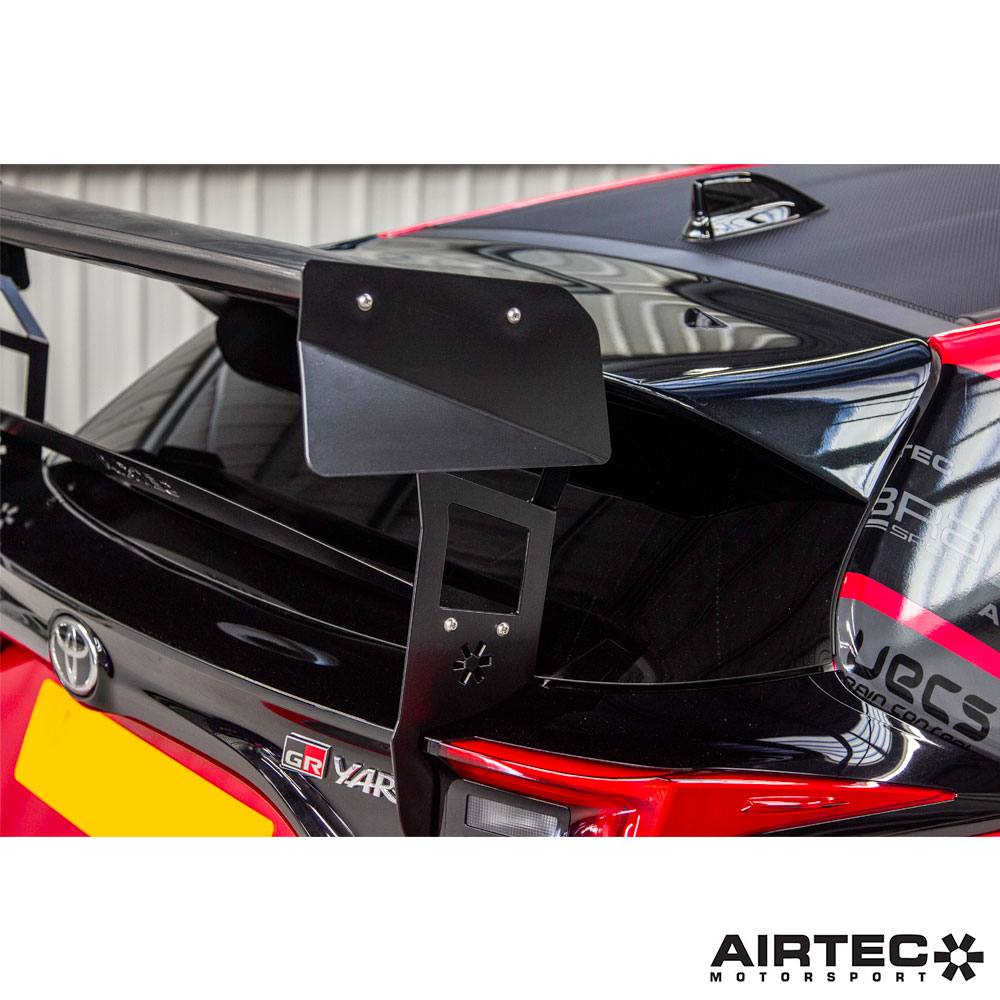

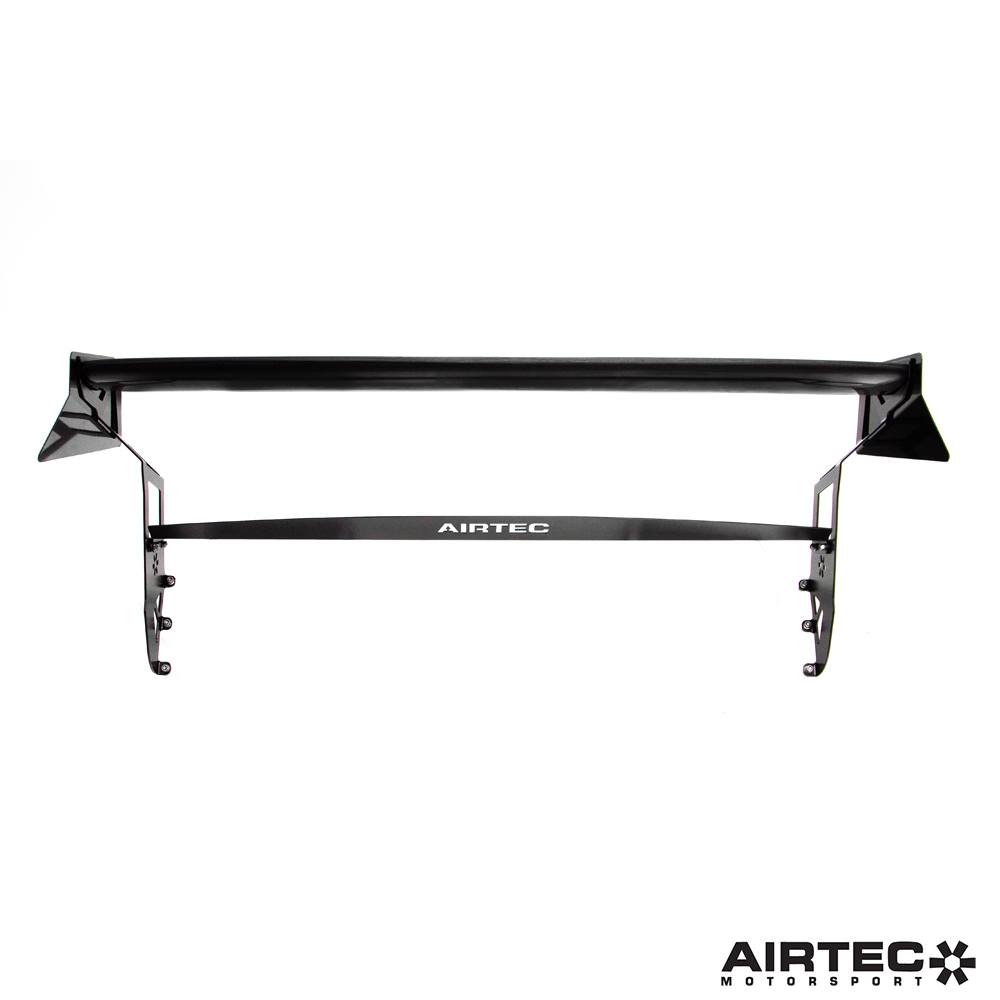

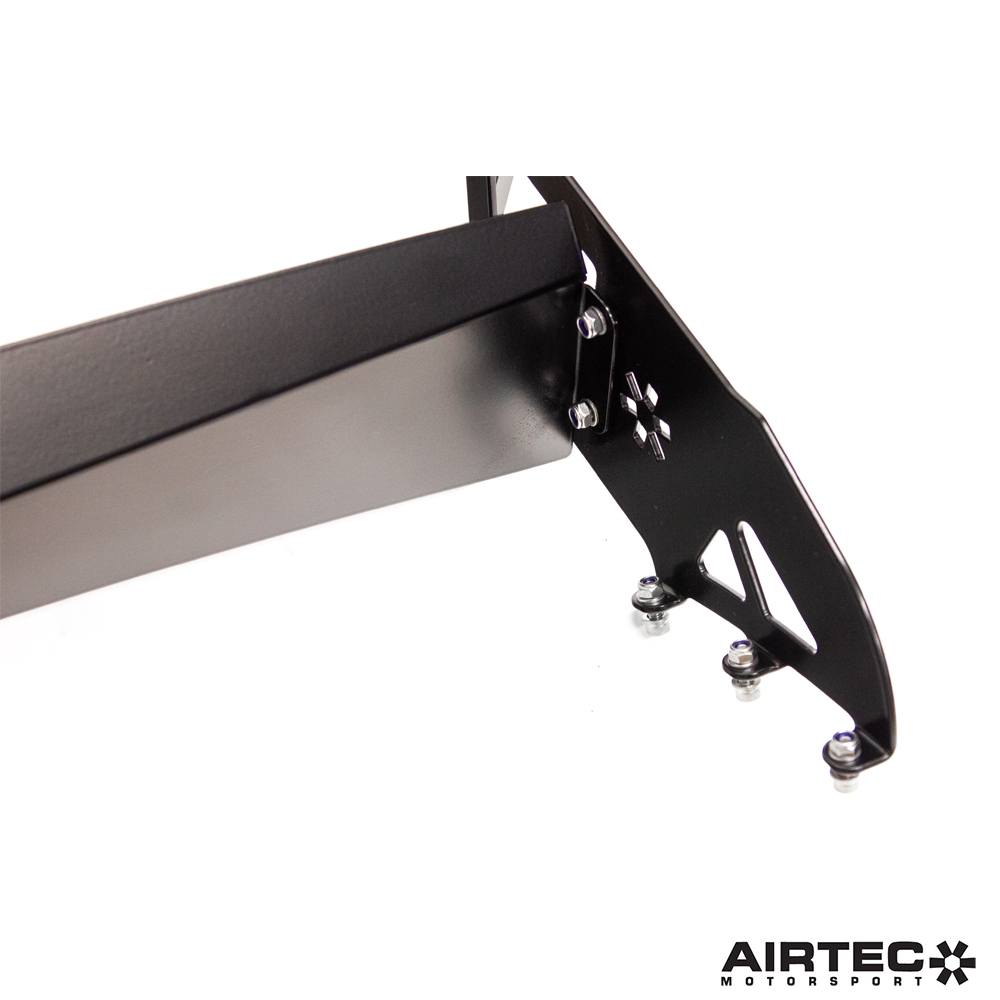

Several designs and variations were tried before we settled on this particular design, which features laser cut uprights in 3mm steel to ensure rigidity. These support an angled lower centre section together with our own GRP upper aerofoil blade design, which is successfully campaigned in the Mini Challenge ClubSport series as part of the official mandatory parts package. The proven aerofoil design is also used on our Time Attack Fiesta track car. The bespoke end plates complete the kit and are finished in a high-quality, satin black powder coat, which is also featured on the uprights and lower section.

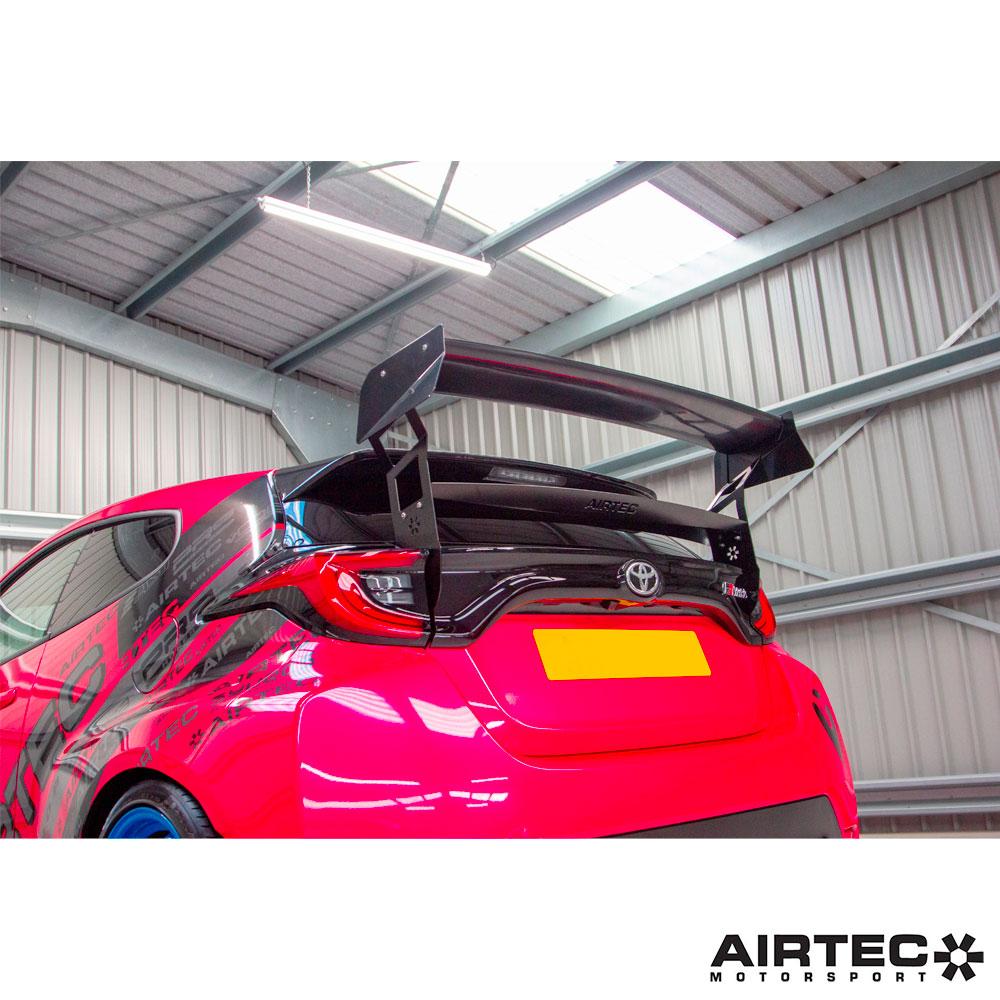

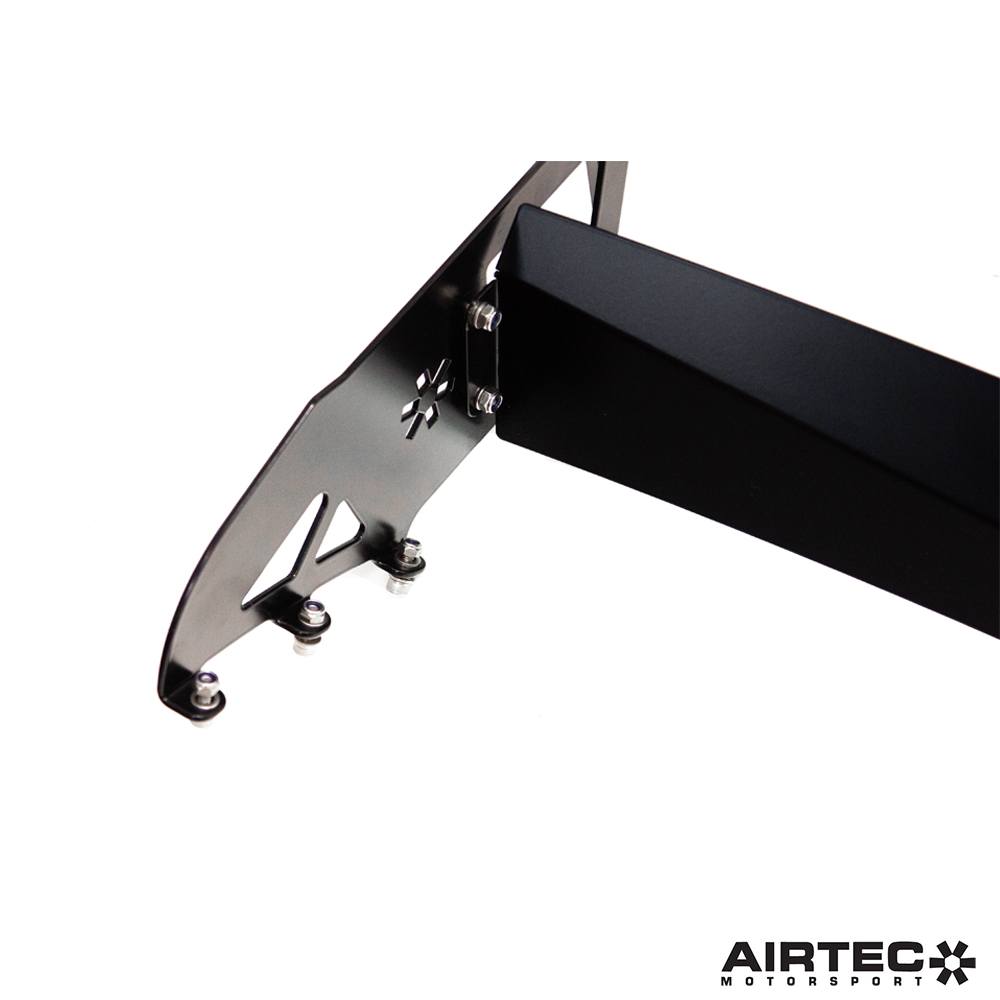

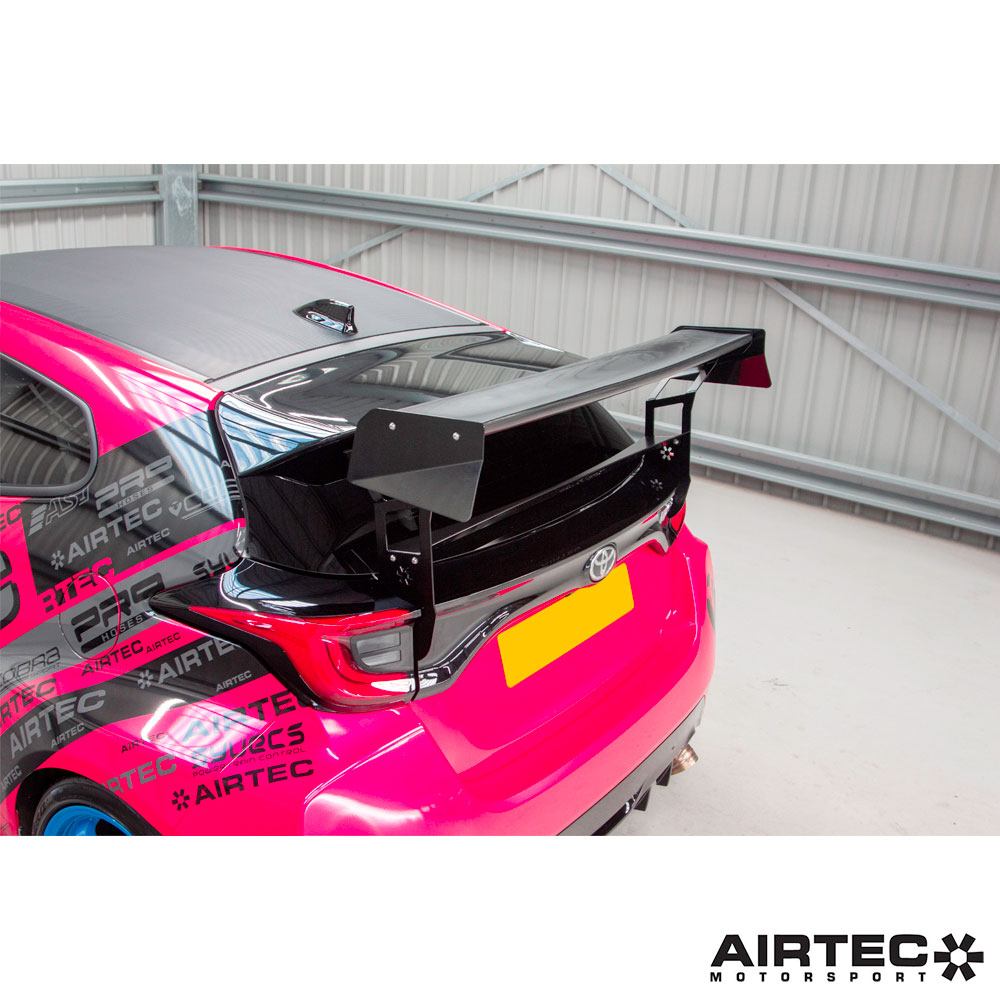

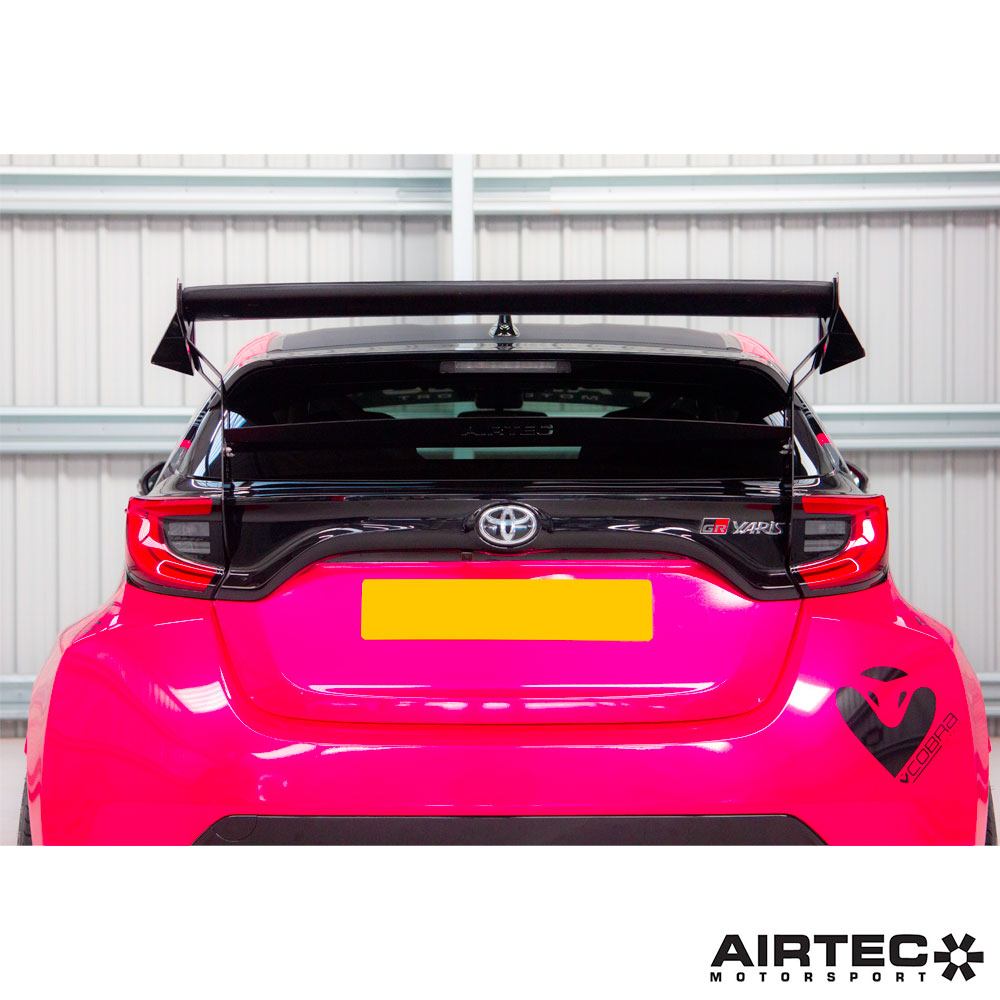

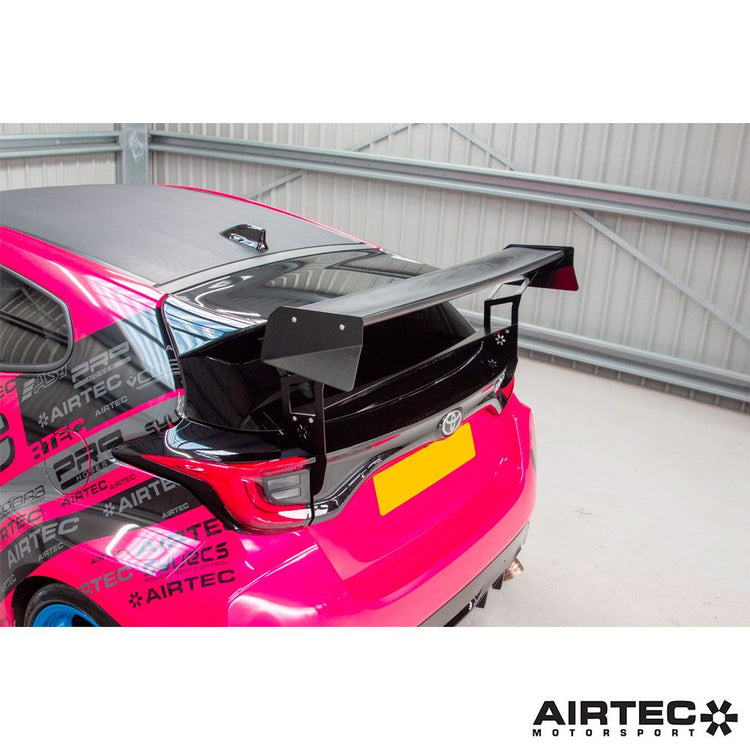

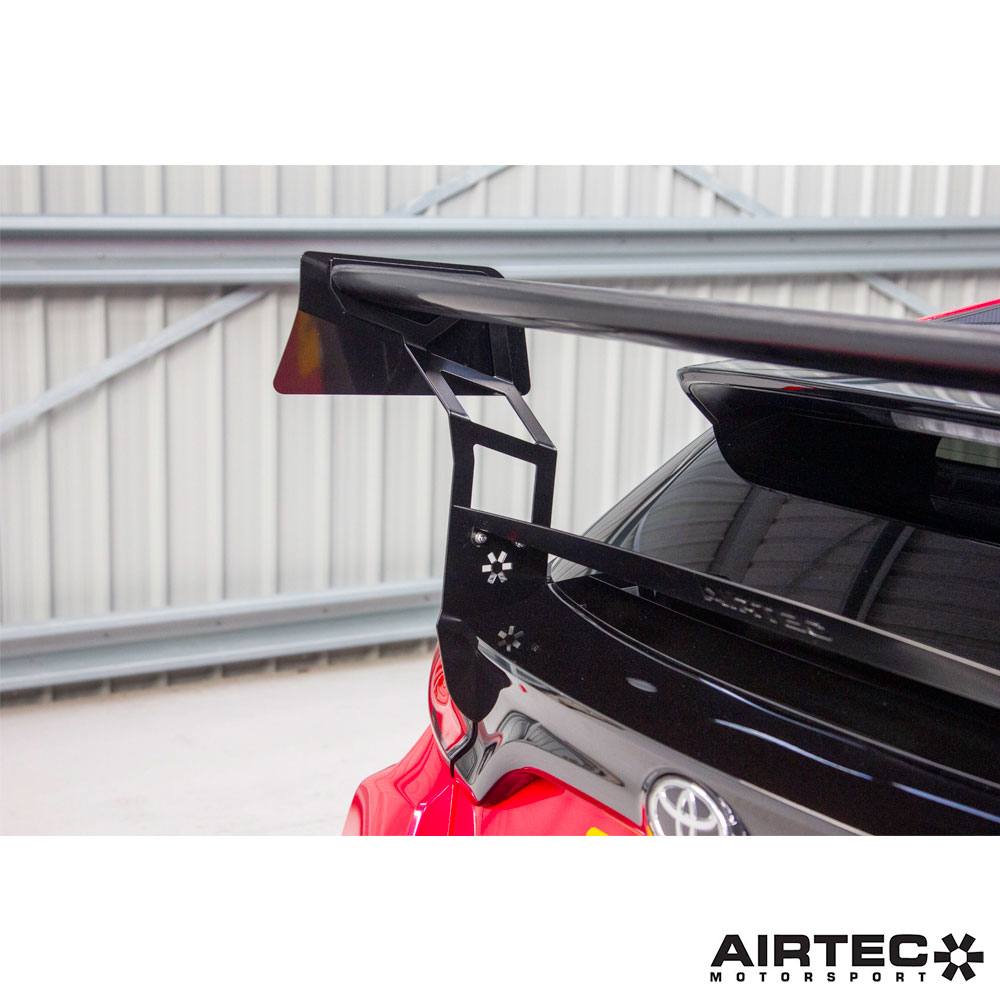

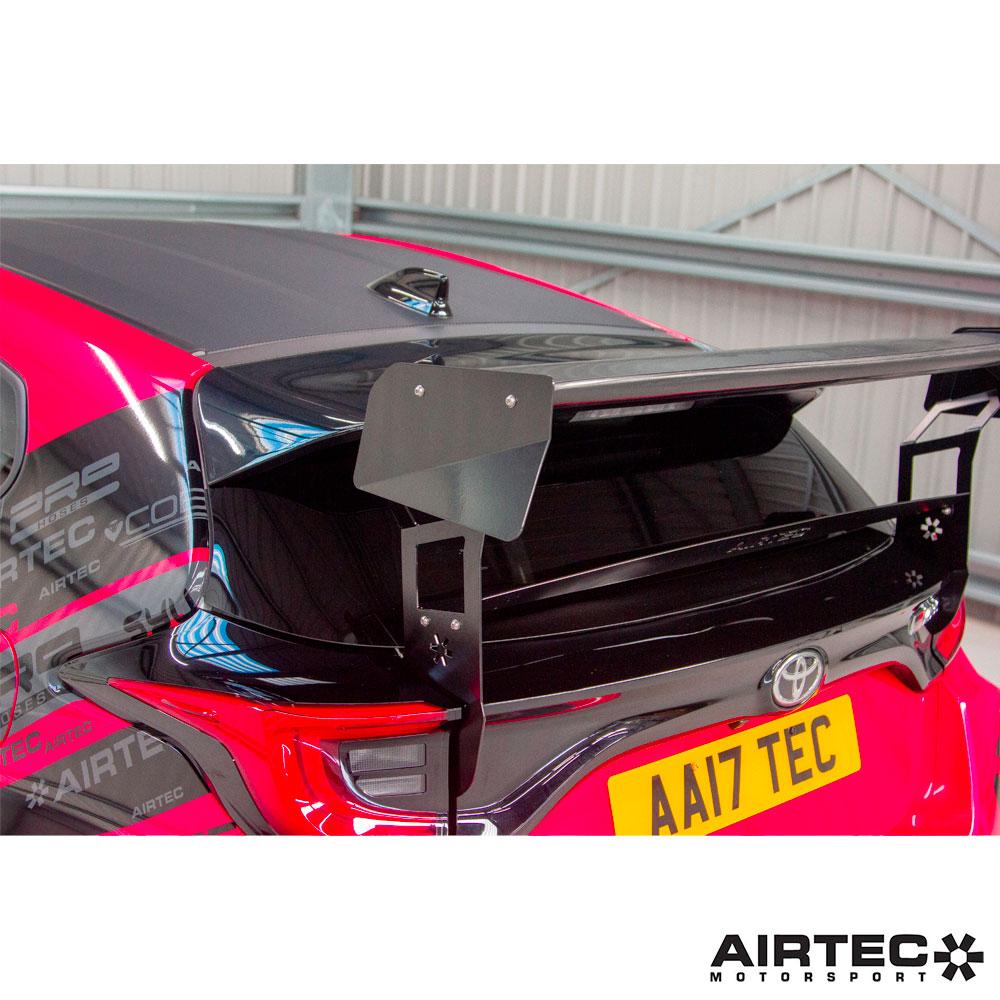

The clever design of the uprights allow them to fit neatly between the tail lights and the boot lid with no modification. The uprights are then secured to the boot lid using six M6 bolts and once fitted, the fittings are all hidden from outside view. Please note: this does require drilling to the boot lid.

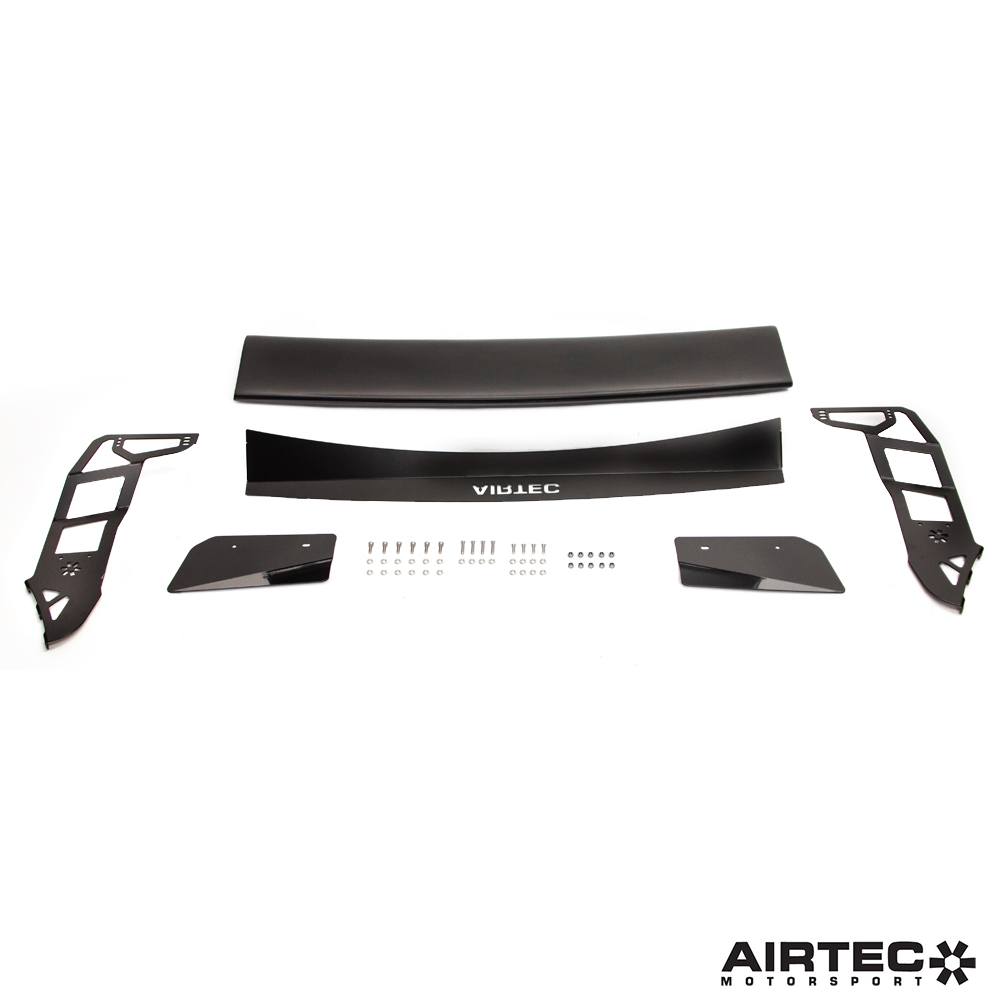

The comprehensive kit also includes all fixtures and fittings, as well as detailed fitting instructions.
Features:
- Designed and developed in the UK for the Yaris GR
- 3mm steel uprights that fit between the boot lid and tail lights
- Rigid fixings ensure the wing is fully supported
- Stain black powder coated finish
- Comprehensive fitting kit with all fixtures, fittings and detailed instructions.
- Choose centre blade section finished in gel coat or satin black paint (extra cost)
PLEASE NOTE:
- Drilling to the boot lid is required to fit this product
- We endeavour to deliver an extremely high-quality product but due to the handmade manufacturing process there is the possibility of imperfections on the centre wing blade. Therefore the appropriate prepping and painting is recommended before fitting – or we can supply the blade prepped and painted before sending it for an additional cost.
AIRTEC Part No: ATMSYGR20
TECHNICAL DATA
Following an extensive development process by our in-house design engineer team, AIRTEC Motorsport is proud to launch our new rear wing set up for the Toyota Yaris GR, suited to track or fast road use.
Several designs and variations were tried before we settled on this particular design, which features laser cut uprights in 3mm steel to ensure rigidity. These support an angled lower centre section together with our own GRP upper aerofoil blade design, which is successfully campaigned in the Mini Challenge ClubSport series as part of the official mandatory parts package. The proven aerofoil design is also used on our Time Attack Fiesta track car. The bespoke end plates complete the kit and are finished in a high-quality, satin black powder coat, which is also featured on the uprights and lower section.
The clever design of the uprights allow them to fit neatly between the tail lights and the boot lid with no modification. The uprights are then secured to the boot lid using six M6 bolts and once fitted, the fittings are all hidden from outside view. Please note: this does require drilling to the boot lid.
The comprehensive kit also includes all fixtures and fittings, as well as detailed fitting instructions.
Features:
- Designed and developed in the UK for the Yaris GR
- 3mm steel uprights that fit between the boot lid and tail lights
- Rigid fixings ensure the wing is fully supported
- Stain black powder coated finish
- Comprehensive fitting kit with all fixtures, fittings and detailed instructions.
- Choose centre blade section finished in gel coat or satin black paint (extra cost)
PLEASE NOTE:
- Drilling to the boot lid is required to fit this product
- We endeavour to deliver an extremely high-quality product but due to the handmade manufacturing process there is the possibility of imperfections on the centre wing blade. Therefore the appropriate prepping and painting is recommended before fitting – or we can supply the blade prepped and painted before sending it for an additional cost.
AIRTEC Part No: ATMSYGR20
