Airtec Motorsport Stage 3 Front Mount Intercooler for Audi Ttrs 8s
- Regular price
- £1,267.60
- Sale price
- £1,267.60
- Regular price
-
TECHNICAL DATA

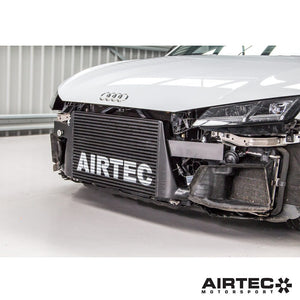

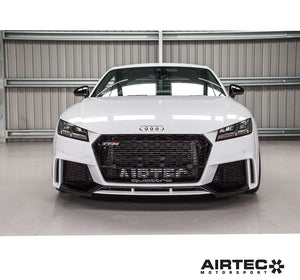

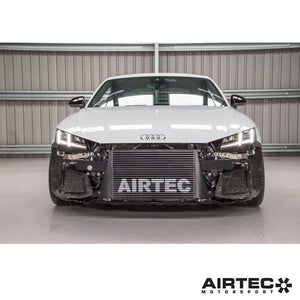

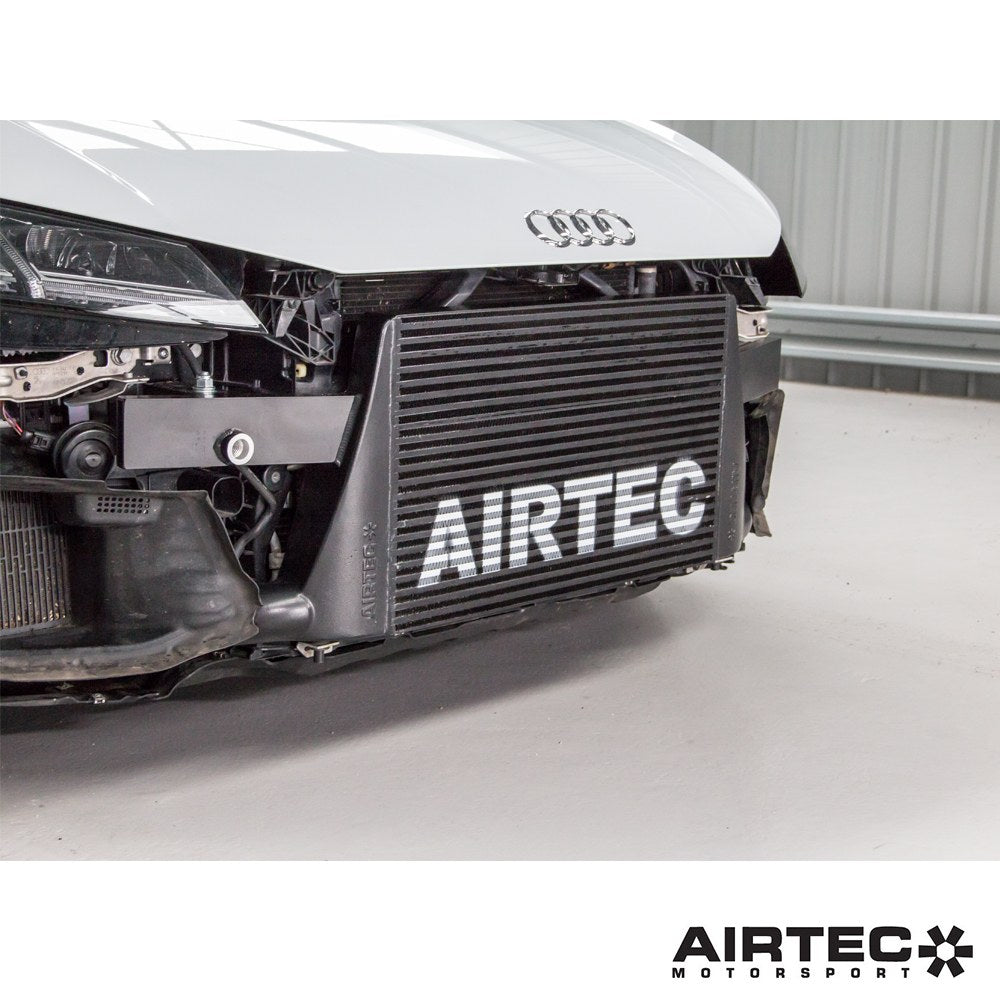

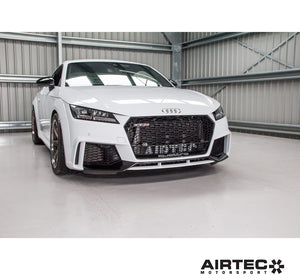

Freshly developed at AIRTEC HQ in the UK, we’re proud to launch our Stage 3 front mount intercooler kit with integrated crash bar design (replaces the stock crash bar) aimed at modified Audi TTRS 8S owners who want the very highest level of cooling efficiency, power and performance for track or fast road use.
The finished design features 70mm inlet and outlets that flow freely through custom end tanks into a stepped 100mm to 50mm deep, single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.
It therefore offers a huge 125% increase in surface area and a 108% increase in volume over standard with radically reduces charge temperatures, which is suited for highly modified examples with higher boost pressures and capable of supporting over 500bhp.
It fits neatly behind the original bumper, however cutting and trimming is required to fit. The comprehensive kit includes AIRTEC Motorsport’s CAD designed end tanks, laser-cut brackets, and all fixtures and fittings.
Its proven cooling efficiency makes it an essential modification for all modified Audi TTRS 8S.
Features:
- 108% bigger capacity
- 125% larger frontal area
- Proven race quality bar and plate core
- 70mm inlet and outlets
- CAD designed end tanks to optimise air flow
- Comes complete with full fitting instructions
- Proven power increases and cooling efficiency
- Towing eye feature retained
- Replacement silicone hose for headlight washer jet
- Available in Pro Series Black only
Please note: Integrated crash bar replaces the stock crash bar. Cutting and trimming is required to fit this kit.
Dimensions:
OEM intercooler:
Width: 640mm
Height: 163mm
Depth: 80mm
Capacity: 8.3 litres
Front area: 1,043cm²
AIRTEC Motorsport intercooler:
Width: 627mm
Height: 375mm
Depth: 100mm to 50mm stepped core
Capacity: 17.3 litres
Front area: 2,351cm²
Registered Design Right number: 6171871
AIRTEC part no: ATINTVAG39
TECHNICAL DATA
Freshly developed at AIRTEC HQ in the UK, we’re proud to launch our Stage 3 front mount intercooler kit with integrated crash bar design (replaces the stock crash bar) aimed at modified Audi TTRS 8S owners who want the very highest level of cooling efficiency, power and performance for track or fast road use.
The finished design features 70mm inlet and outlets that flow freely through custom end tanks into a stepped 100mm to 50mm deep, single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.
It therefore offers a huge 125% increase in surface area and a 108% increase in volume over standard with radically reduces charge temperatures, which is suited for highly modified examples with higher boost pressures and capable of supporting over 500bhp.
It fits neatly behind the original bumper, however cutting and trimming is required to fit. The comprehensive kit includes AIRTEC Motorsport’s CAD designed end tanks, laser-cut brackets, and all fixtures and fittings.
Its proven cooling efficiency makes it an essential modification for all modified Audi TTRS 8S.
Features:
- 108% bigger capacity
- 125% larger frontal area
- Proven race quality bar and plate core
- 70mm inlet and outlets
- CAD designed end tanks to optimise air flow
- Comes complete with full fitting instructions
- Proven power increases and cooling efficiency
- Towing eye feature retained
- Replacement silicone hose for headlight washer jet
- Available in Pro Series Black only
Please note: Integrated crash bar replaces the stock crash bar. Cutting and trimming is required to fit this kit.
Dimensions:
OEM intercooler:
Width: 640mm
Height: 163mm
Depth: 80mm
Capacity: 8.3 litres
Front area: 1,043cm²
AIRTEC Motorsport intercooler:
Width: 627mm
Height: 375mm
Depth: 100mm to 50mm stepped core
Capacity: 17.3 litres
Front area: 2,351cm²
Registered Design Right number: 6171871
AIRTEC part no: ATINTVAG39
