Forge Motorsport Toyota Supra Mk5 (A90) & BMW Z4 (B58) Oil Catch Can
- Regular price
- £393.65
- Sale price
- £393.65
- Regular price
-
Product Description

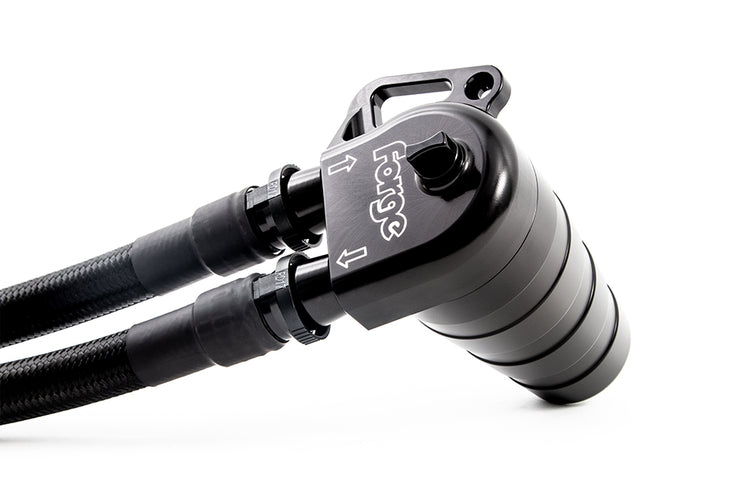

This oil catch tank kit is for the Toyota Supra A90 and BMW Z4 with the BMW B58 Engine, developed by our in-house development team. Not only is it beautifully designed, it has been created to capture the maximum amount of harmful contaminants, including oil deposits, unused fuel vapours and moisture, all of which would ordinarily make their way back through to the inlet of the engine.
When the B58 engine is tuned heavily blow by can occur resulting in poor breathing our specifically designed catch can system and extensive testing has proven our oil catch tank kit's ability to effectively reduce sludge and carbon build up, in turn allowing the engine to both breathe and perform more efficiently. It can therefore be viewed as a genuine performance enhancing product and one we recommend, particularly if you are planning more advanced power tuning at a later date.

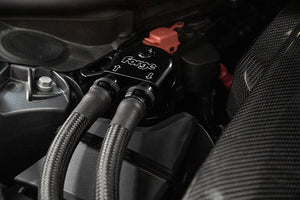

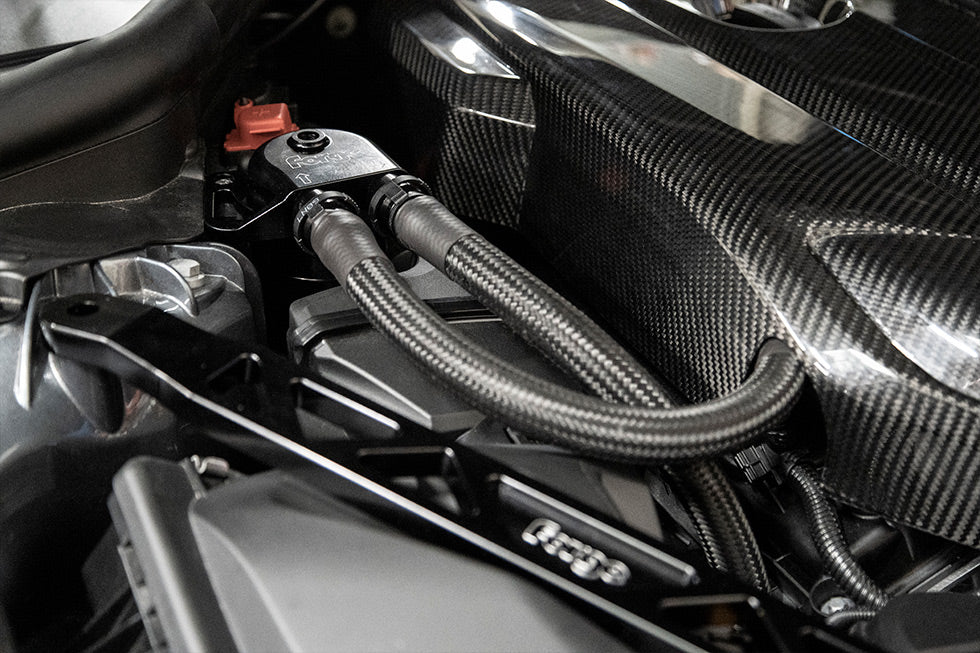

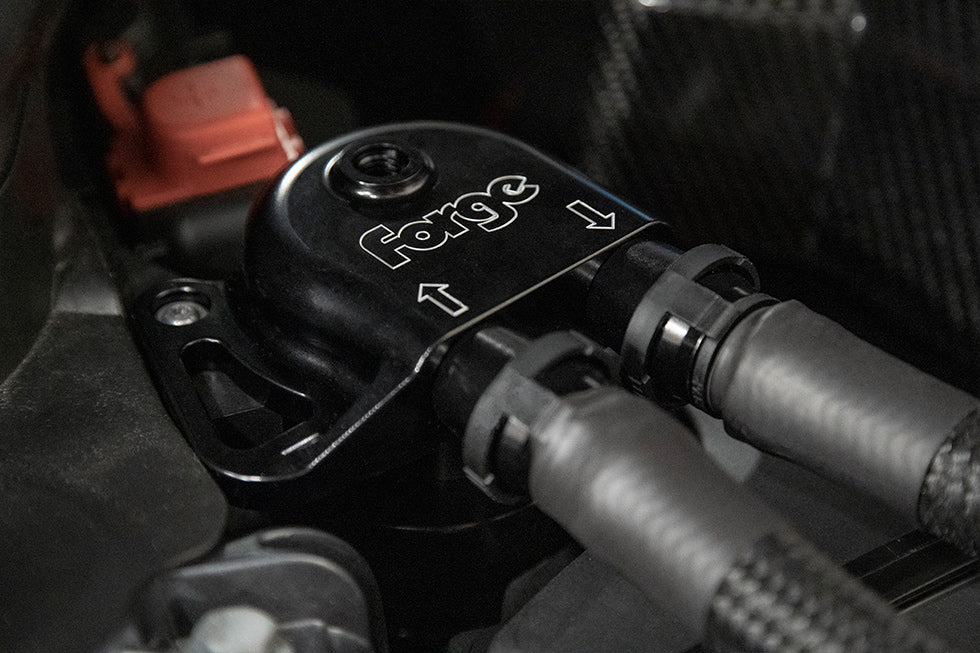

With aesthetics also in mind our catch can has the bracket incorporated into the catch can lid and is placed behind the factory airbox heat shield meaning this important component can still be kept in situ.

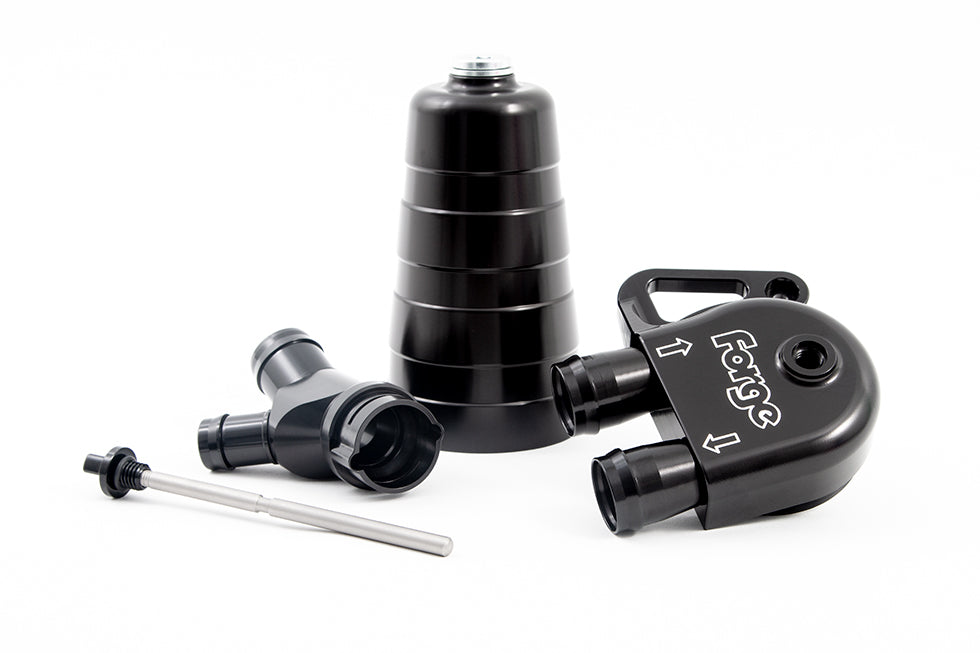

The 0.4l (400cc) catch tank boasts a slew of features intended to make it both easy to check and simple to drain, including a dipstick for level inspection.
The design of the breather adaptor and catch can was formed using the latest 3D solidworks software and engineered for a complete plug and play solution with no cutting or modifying of original components meaning the vehicle can return to stock in just under a hour.
The design of the kit has also been carefully considered, hence its inner tube which is constructed from anti-static smooth fuel resistant nitrile rubber. This is paired with an outer cover made from reinforced stainless steel wire braid (a Forge specialty), specifically a partial inner braid and a full cover outer braid. We developed this complex arrangement in order for the tank to be resistant to both pressure expansion and vacuum collapse, and also to enable the kit to function within a clearly defined temperature range – 54°C to +150°C (-65°F to 300°F)

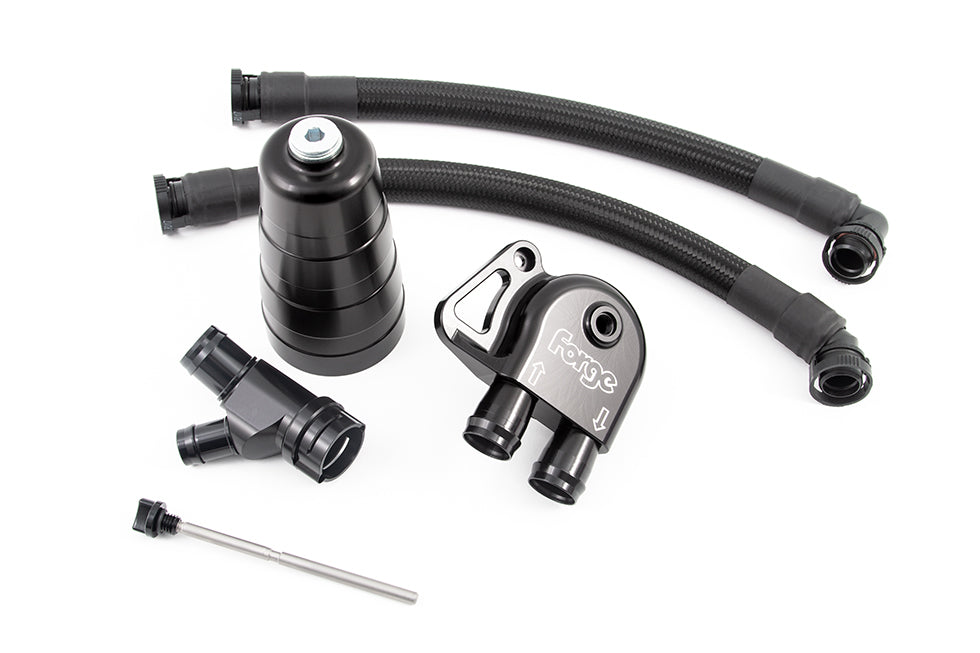

Finally, this kit includes machined billet fittings that are anodised black to form an OEM-looking product when installed.
Compatible Vehicles
Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.
Warranty Information
The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Product Description
This oil catch tank kit is for the Toyota Supra A90 and BMW Z4 with the BMW B58 Engine, developed by our in-house development team. Not only is it beautifully designed, it has been created to capture the maximum amount of harmful contaminants, including oil deposits, unused fuel vapours and moisture, all of which would ordinarily make their way back through to the inlet of the engine.
When the B58 engine is tuned heavily blow by can occur resulting in poor breathing our specifically designed catch can system and extensive testing has proven our oil catch tank kit's ability to effectively reduce sludge and carbon build up, in turn allowing the engine to both breathe and perform more efficiently. It can therefore be viewed as a genuine performance enhancing product and one we recommend, particularly if you are planning more advanced power tuning at a later date.
With aesthetics also in mind our catch can has the bracket incorporated into the catch can lid and is placed behind the factory airbox heat shield meaning this important component can still be kept in situ.
The 0.4l (400cc) catch tank boasts a slew of features intended to make it both easy to check and simple to drain, including a dipstick for level inspection.
The design of the breather adaptor and catch can was formed using the latest 3D solidworks software and engineered for a complete plug and play solution with no cutting or modifying of original components meaning the vehicle can return to stock in just under a hour.
The design of the kit has also been carefully considered, hence its inner tube which is constructed from anti-static smooth fuel resistant nitrile rubber. This is paired with an outer cover made from reinforced stainless steel wire braid (a Forge specialty), specifically a partial inner braid and a full cover outer braid. We developed this complex arrangement in order for the tank to be resistant to both pressure expansion and vacuum collapse, and also to enable the kit to function within a clearly defined temperature range – 54°C to +150°C (-65°F to 300°F)
Finally, this kit includes machined billet fittings that are anodised black to form an OEM-looking product when installed.
Compatible Vehicles
Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.
Warranty Information
The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.
Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
