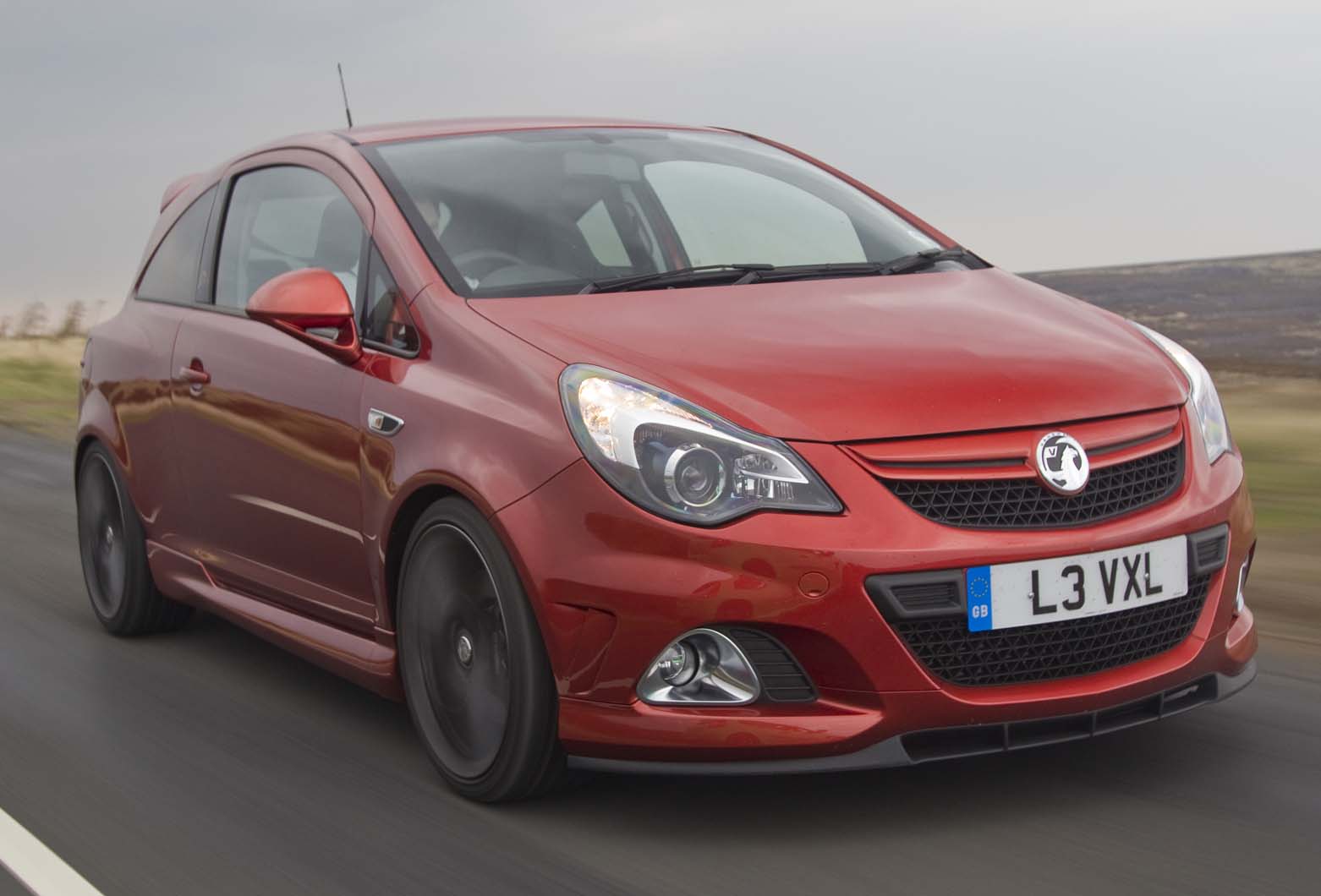

Corsa D VXR Tuning Guide
The Corsa D VXR is one of the most popular small hot hatches to tune — and for good reason. The 1.6 turbo engine is revvy, responsive, and takes well to modifications at every level.
Whether you've got the earlier Z16LER or later A16LER version, the tuning path is the same and the results are impressive for such a small, lightweight car.
We've tuned a huge number of Corsa D VXRs on our in-house 4WD DynoDynamics rolling road here in Coventry.
This guide walks you through every stage of tuning, what parts you need, the power you can realistically expect, and what to look out for along the way. All tried and tested on our dyno and on the road.
All power figures in this guide are based on real results from our own dyno — not manufacturer claims.
Stock Where you're starting from
Vauxhall rated the Corsa D VXR at 192hp, but on our dyno the numbers can vary depending on which software version the car is running. Earlier cars with the Z16LER engine and older ECU calibrations typically make around 190hp, which is bang on the money.
Later A16LER cars with updated software tend to come in a bit lower — usually around 175–180hp on our dyno. Either way, the engine responds brilliantly to tuning.
Stage 1 — Remap Only The best value mod you can do
A Stage 1 remap is the best value modification you can do to a Corsa D VXR. With careful ECU calibration on our rolling road, we can fine-tune the car to produce around 205–225hp and 220ft/lb of torque.
You'll also see around 60hp and 70–80ft/lb of improvement in the mid-range, which is where you really feel the difference on the road — the car pulls noticeably harder from lower RPM.
No hardware upgrades are required at Stage 1, but we do advise fitting Bosch 395cc uprated injectors and an uprated panel or cone filter to get the best from the remap.
The standard injectors are close to their limit even at Stage 1, so upgrading them now gives the ECU more headroom to work with and means the car is ready for Stage 2 when you decide to go further.
Stage 2 — Exhaust + Injectors + Induction Let it breathe
At Stage 2, the standard injectors are maxed out beyond our Stage 1 package, so upgrading to 395cc injectors becomes essential rather than just advised.
We also fit a free-flowing 3" exhaust system and a cone filter to allow the engine to breathe properly on both the intake and exhaust side.
With the injectors upgraded, a 3" turbo-back exhaust fitted, and our custom ECU remap recalibrated to suit, you can expect around 225–235hp.
The car feels noticeably sharper at this stage — the throttle response improves, the mid-range is stronger, and the exhaust note is transformed.
- Bosch 395cc uprated injectors
- 3" turbo-back exhaust system
- Cone filter
- Custom Stage 2 remap
Stage 3 — Intercooler Upgrade Consistent power, higher boost
At Stage 3, we look to reduce intake temperatures by fitting an uprated front-mount intercooler. The standard intercooler simply can't keep up once you're running higher boost levels — intake temps climb, the ECU pulls timing to protect the engine, and you lose power. This is especially noticeable on warmer days or during back-to-back hard runs.
With an Airtec Stage 2 front-mount intercooler fitted and the ECU recalibrated, you can expect around 235–250hp and 240–255ft/lb of torque.
The power delivery becomes more consistent and repeatable, and the car feels stronger in situations where the stock intercooler would have been heat-soaking.
- 3" exhaust system (from Stage 2)
- Bosch 395cc injectors (from Stage 2)
- Cone filter
- Uprated front-mount intercooler
- Custom Stage 3 remap
Supporting Modifications Chassis & reliability
The Corsa D VXR is a lightweight, short-wheelbase car with a lot of power going through the front wheels. As you add more power, investing in the chassis makes a real difference to how the car handles and puts that power down.
Coilovers — A set of BC Racing BR Series coilovers will completely transform the way the car drives. Adjustable ride height and damping lets you dial in the setup for fast road, track days, or a balance of both. The reduction in body roll and improvement in turn-in over the stock suspension is dramatic, and it helps the car put the extra power down much more effectively.
A Note on Reliability Piston 4 failure
The 1.6 turbo in the Corsa D VXR does have a known weak point: piston 4 failure. In our experience, this seems quite random — we've seen it happen on tuned cars, stock cars, high-mileage cars, and low-mileage ones.
There's no single cause and no guaranteed way to prevent it, but the best things you can do to minimise the risk are:
- Use good quality oil and change it regularly
- Always let the car warm up properly before driving hard
- Let the car cool down before switching off after a spirited drive
- Make sure you use a reputable, experienced tuner for your remap
This isn't something to put you off tuning the car — we have tuned over 1000 of these cars on stock engine and the vast majority of Corsa VXRs live long, happy lives. But it's worth being aware of and looking after the engine properly.
Complete the Look Styling upgrades
Once the performance is sorted, it's worth finishing the car off with some styling upgrades to match. We stock a full range of splitters, side skirts, spoiler extensions, and diffusers for the Corsa D VXR — all designed to give the car a more aggressive look without going over the top.
Browse all Corsa D VXR Styling Parts →Quick Reference Power by stage
| Stage | Mods Required | Power | Torque |
|---|---|---|---|
| Stock (Z16) | None | ~190hp | — |
| Stock (A16) | None | ~175–180hp | — |
| Stage 1 | Remap (+ 395cc injectors & filter advised) | 205–225hp | ~220ft/lb |
| Stage 2 | 395cc injectors + 3" exhaust + cone filter + remap | 225–235hp | 225–235ft/lb |
| Stage 3 | Intercooler + all Stage 2 hardware + remap | 235–250hp | 240–255ft/lb |
All figures based on real dyno results at Wayside Performance, Coventry. Individual results may vary depending on the condition of the car, fuel quality, and ambient conditions. 99 RON fuel required.
