Airtec Motorsport Intercooler for Ford Puma 1.5 St
- Regular price
- £469.95
- Sale price
- £469.95
- Regular price
-
TECHNICAL DATA
As part of our expanding Ford Puma product range, AIRTEC Motorsport is proud to launch our intercooler upgrade suitable for track or fast road use.
In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a a full size, single-pass core design that covers the full span of the vehicle’s grille, measuring nearly three times taller than the original. This offers a massive 150% increase in frontal area and a huge increase in capacity, which allows it to make the most of the air flow provided.

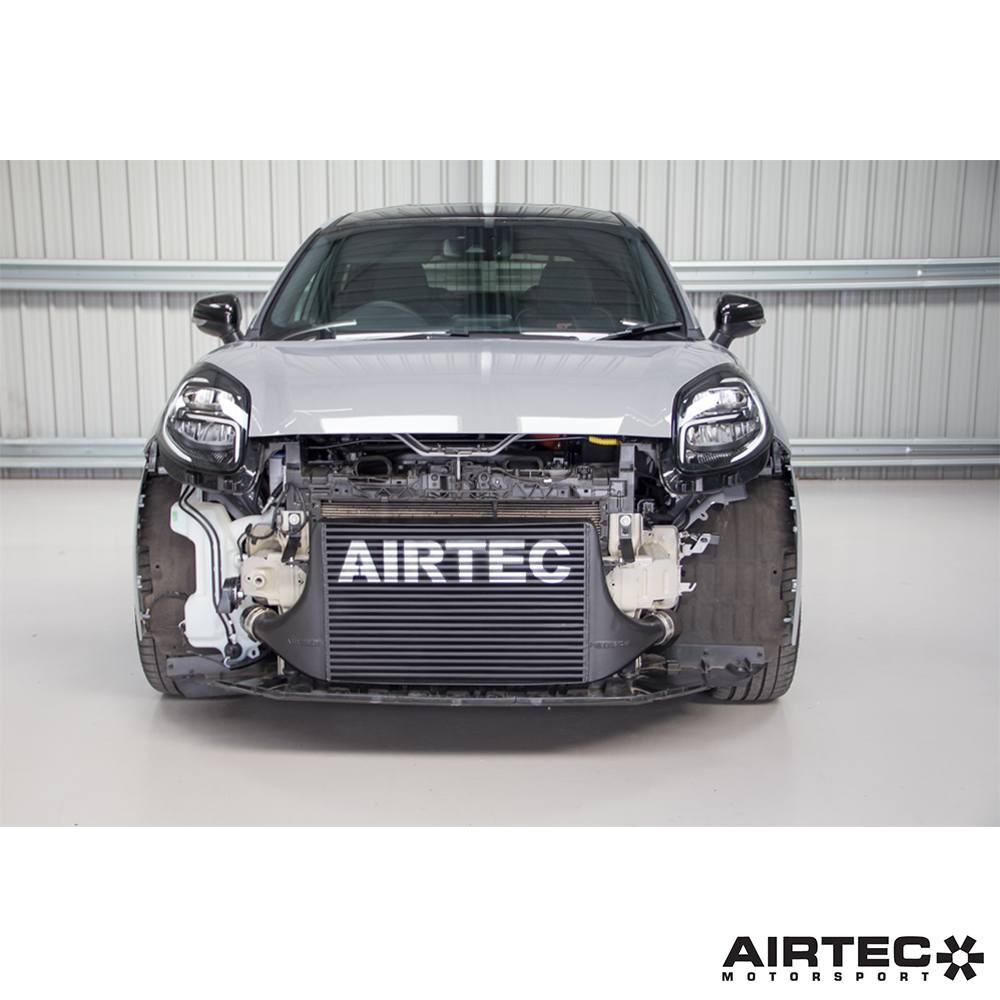

The core is 80mm in depth, which fits neatly in front of the standard crash bar and behind the bumper with no modification required.

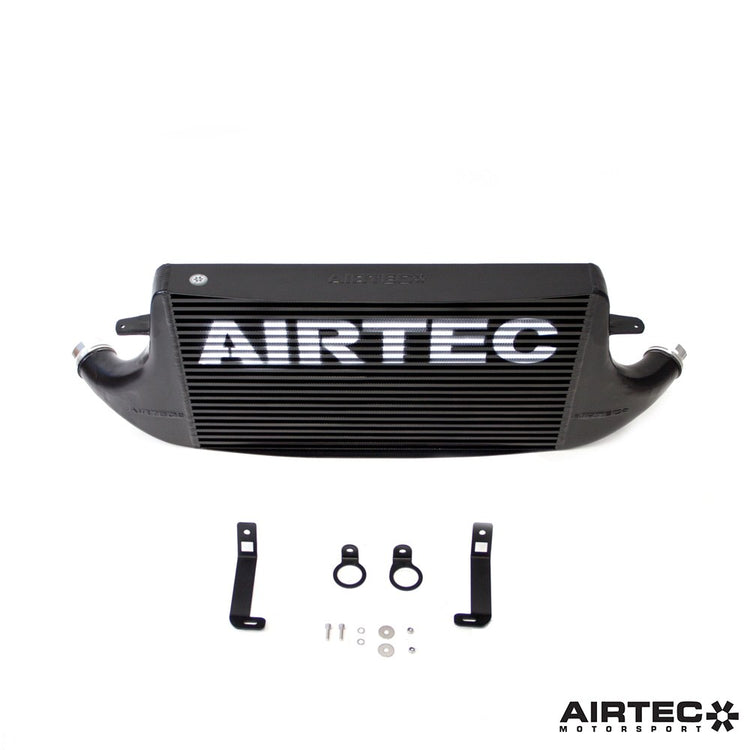

The comprehensive kit includes AIRTEC Motorsport’s cast end tanks, laser-cut brackets and all fixtures and fittings for a direct, bolt-on installation.
It’s proven cooling efficiency and straight forward fitment makes it an essential modification for all modified Fiesta Mk8 ST models.
Dimensions:
OEM intercooler
Width: 690mm
Height: 140mm
Depth: 75mm
Inlet: 50mm
Outlet: 55mm
Front area: 966cm²
AIRTEC Motorsport intercooler
Width: 710mm
Height: 415mm
Depth: 80mm
Inlet: 60mm
Outlet: 67mm
Front area: 2,945cm²
Features:
- Cast end tanks to optimise air flow
- Larger sbar and plate intercooler core
- Comes complete with full fitting instructions
- Proven power increases and cooling efficiency
- Available in satin black
Registered Design Right number: 6082519
AIRTEC Part No: ATINTFO56
