Airtec Motorsport Intercooler Upgrade for Volvo C30 and V50 T5 Petrol

TECHNICAL DATA

AIRTEC’s front mount intercooler for the Volvo C30 T5, developed in house at AIRTEC HQ, the HUGE 90mm core and smooth flowing end tanks has been tested and proven to lower intake temps.

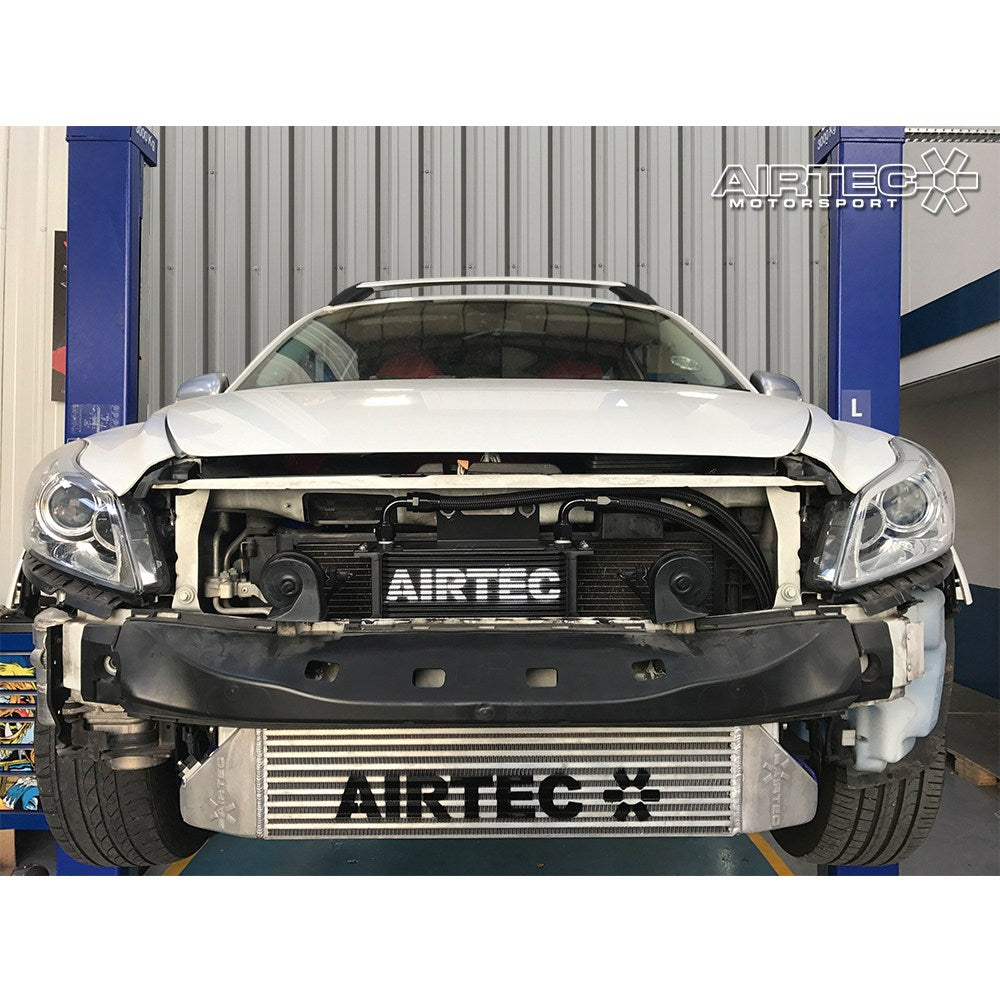

Bolts onto the bottom of the radiator cradle so there isn’t major weight added onto the standard radiator mounts like other alloy intercoolers on the market.

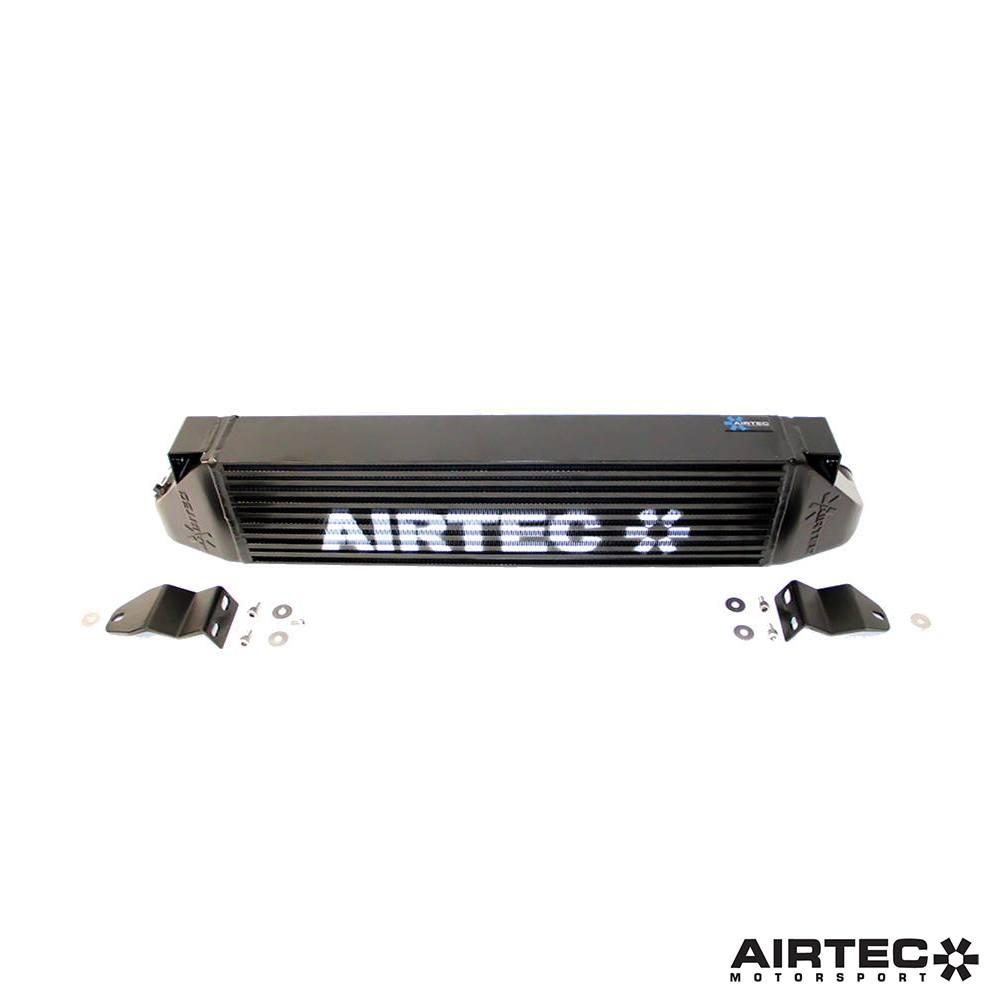

Comes with full brackets and all fixtures and fittings included.

Intercooler available in natural silver or Pro-Series satin black finish for that ultimate stealth look.
Optional big boost pipe kit only available in black.

Still as easy to fit and improved high-flow design.

Test Results

Standard Volvo C30 intercooler:

Run 1

129 degrees – Inlet Temp
57 degrees – Outlet Temp

Run 2

130 degrees – Inlet Temp
59 degrees – Outlet Temp

AIRTEC intercooler:

Run 1

115 degrees – Inlet Temp
20 degrees – Outlet Temp

Run 2

122 degrees – Inlet Temp
24 degrees – Outlet Temp

Run 3

120 degrees – Inlet Temp
23 degrees – Outlet Temp

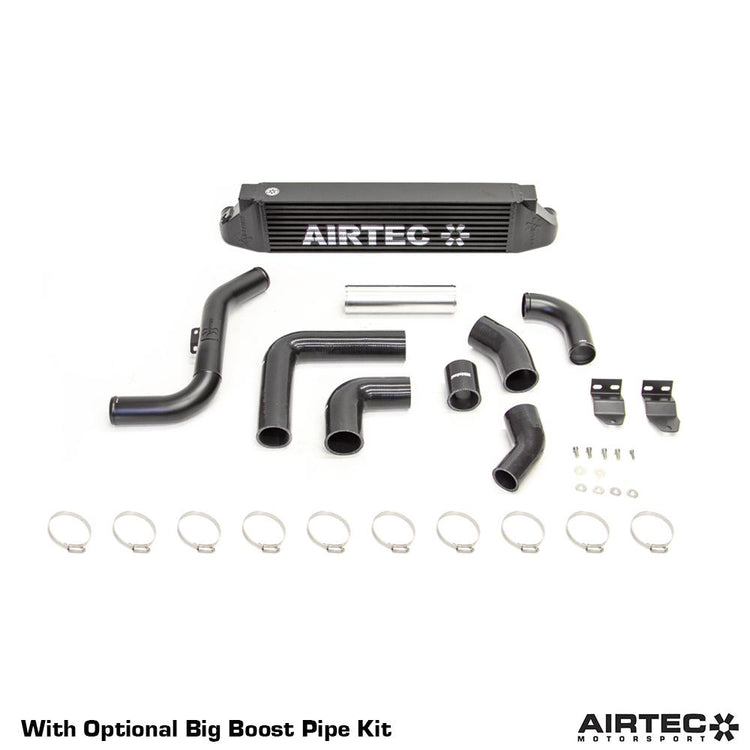

Optional extra: AIRTEC Motorsport big boost pipe kit
Approximate dimensions (Not including end tanks):

165mm high

325mm width

90mm thick

Will also fit: Volvo V50 T5 & S40 T5

Registered Design Right number: 6022636

AIRTEC part no: ATINTVOL1
