AIRTEC MOTORSPORT TURBO ELBOW FOR AUDI RS3 8V / 8Y / TTRS (8S) (RHD)

Regular price
£349.95
Sale price
£349.95
Regular price
TECHNICAL DATA As part of our expanding Audi product range, AIRTEC Motorsport are proud to launch our cast turbo elbow for the R...  Read more

TECHNICAL DATA

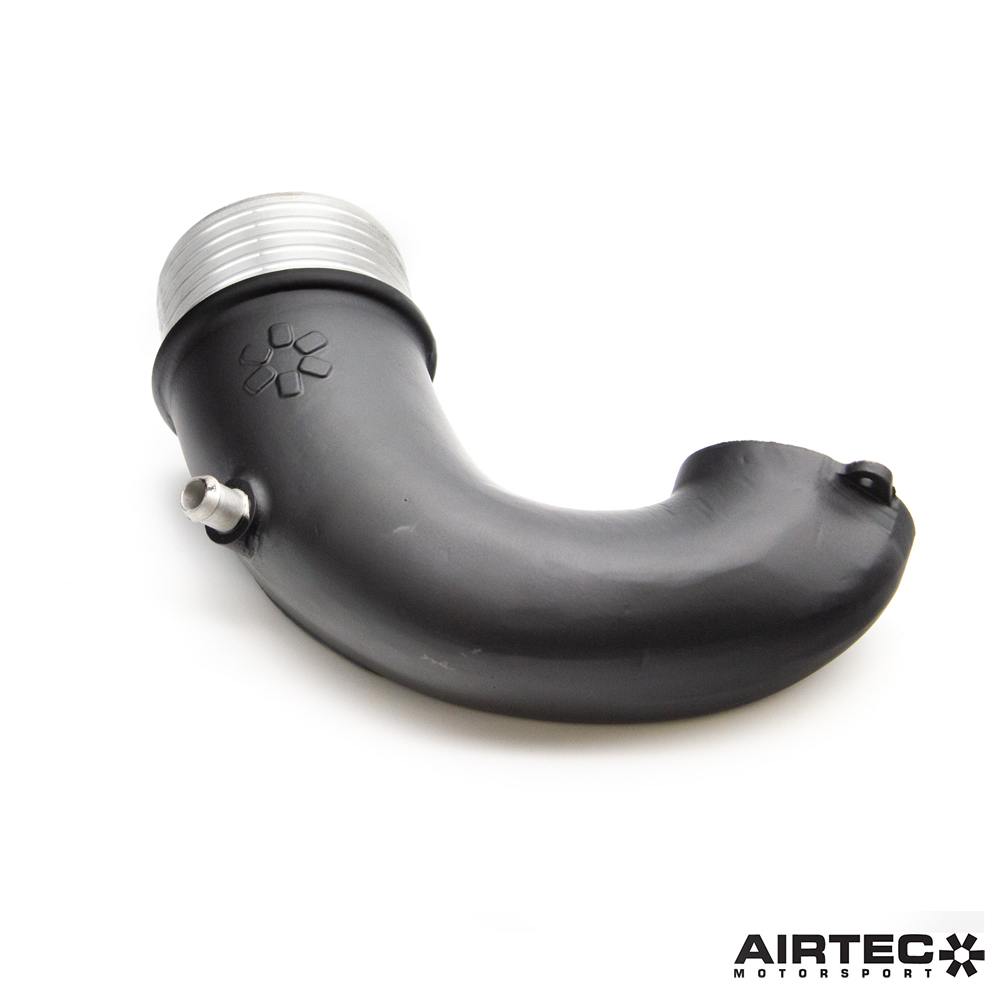

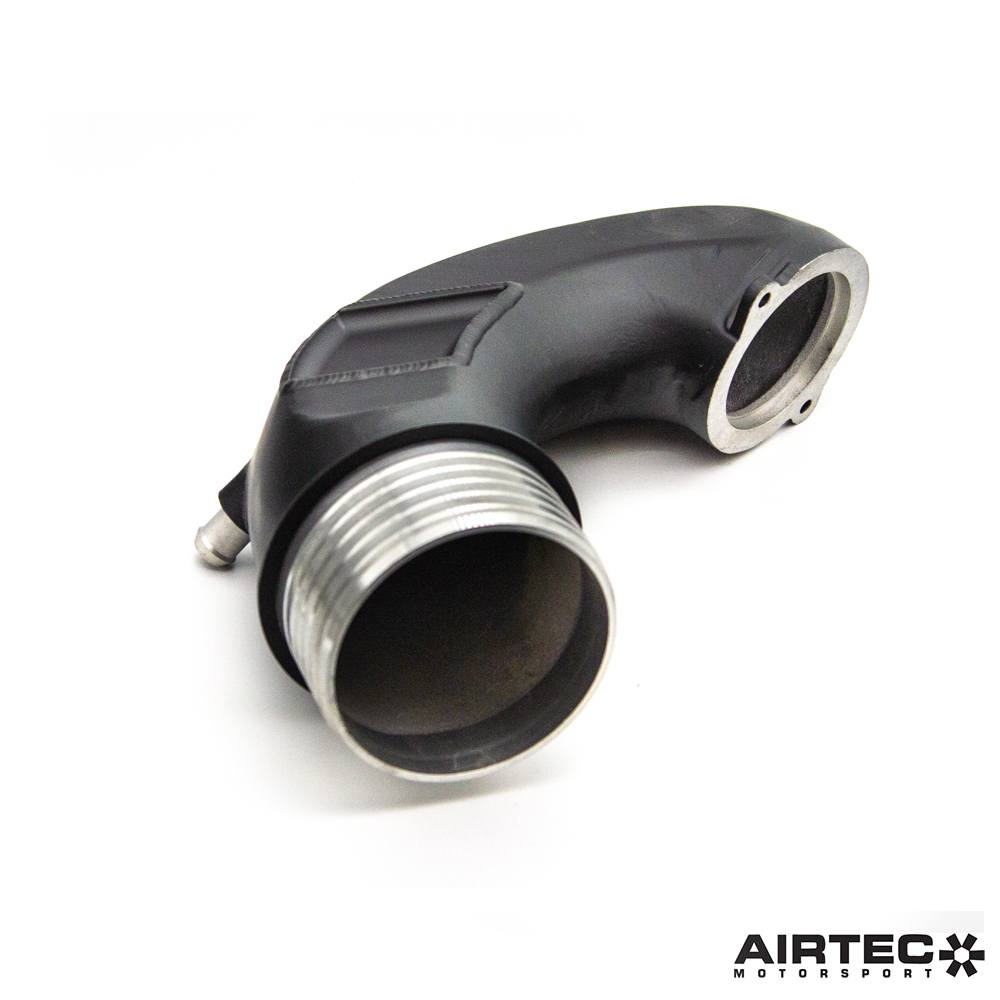

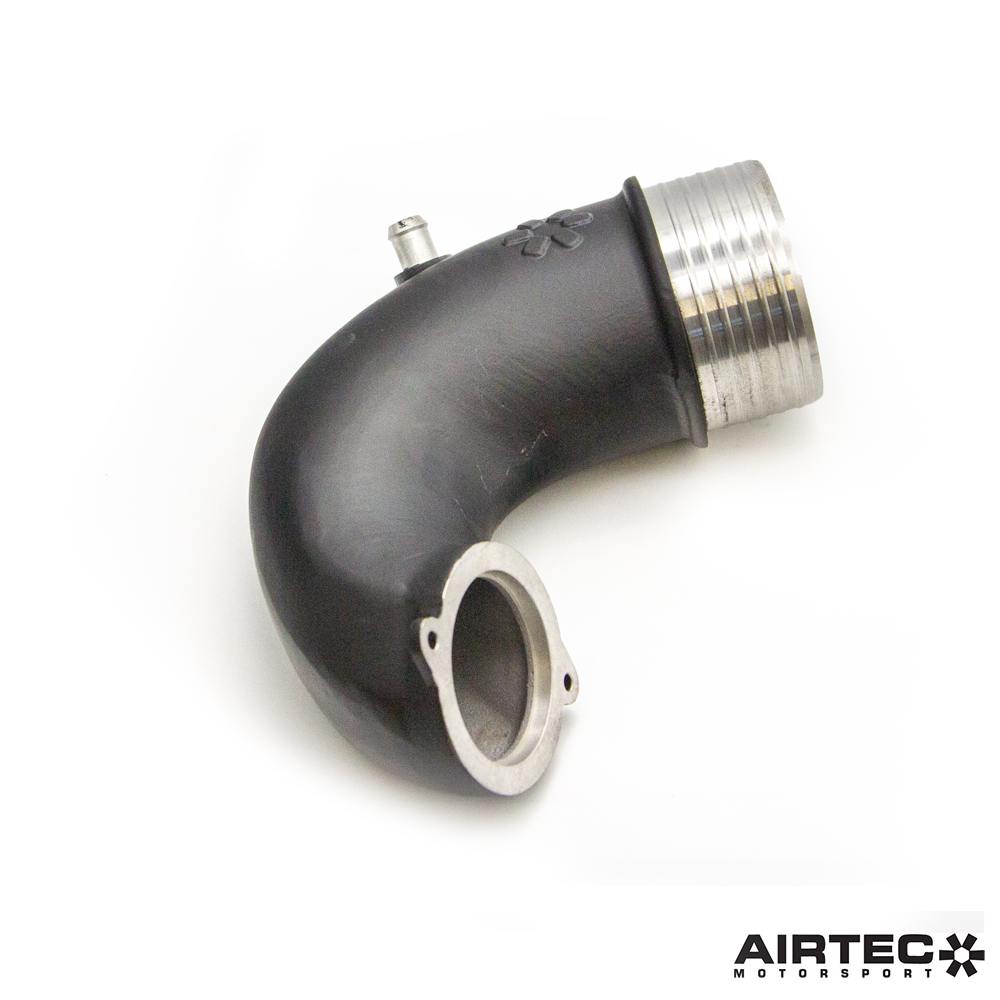

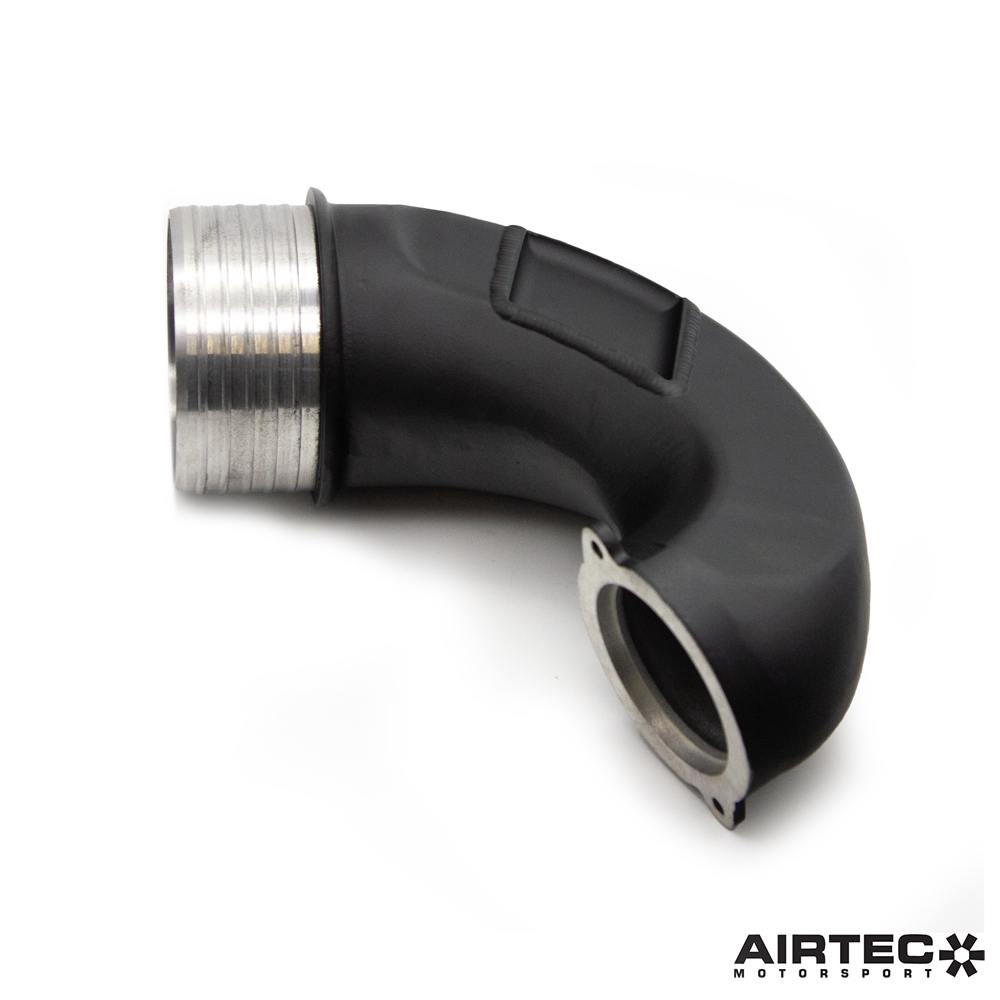

As part of our expanding Audi product range, AIRTEC Motorsport are proud to launch our cast turbo elbow for the RS3 8V kit for fast road or track use.

The bottle neck of the 2.5 TFSI engine is the turbo elbow, which reduces down in diameter massively as it passes down behind the engine to the turbo. Our approach to improving this focused on making the very most of the available space and as a result, our in-house design engineer team were able to create an elbow design that is unrivalled on the market for it’s increase in diameter and improvement in flow.

Featuring a 4″/102mm inlet, the elbow gently tapers down with no aggressive step to ensure optimum flow from start to finish with a substantially increased volume over standard. As a result, the AIRTEC Motorsport enlarged elbow measures a huge 8,171mm² at its widest cross-sectional measurement, compared to the original pipe’s 5,026mm² at its widest point, therefore offering a huge increase of 62.5%. On average, it’s 30% larger internally compared to the standard elbow, offering a huge increase in capacity. This improves throttle response and reduces restriction, which is key for those chasing increased power from their cars.

A direct replacement part, the elbow is made from high-quality cast aluminium and has been designed to work with other our own AIRTEC Motorsport induction it (similar sized induction kits should also fit). To fit the right-hand drive models, an indentation has been introduced to allow clearance for the brake master cylinder.

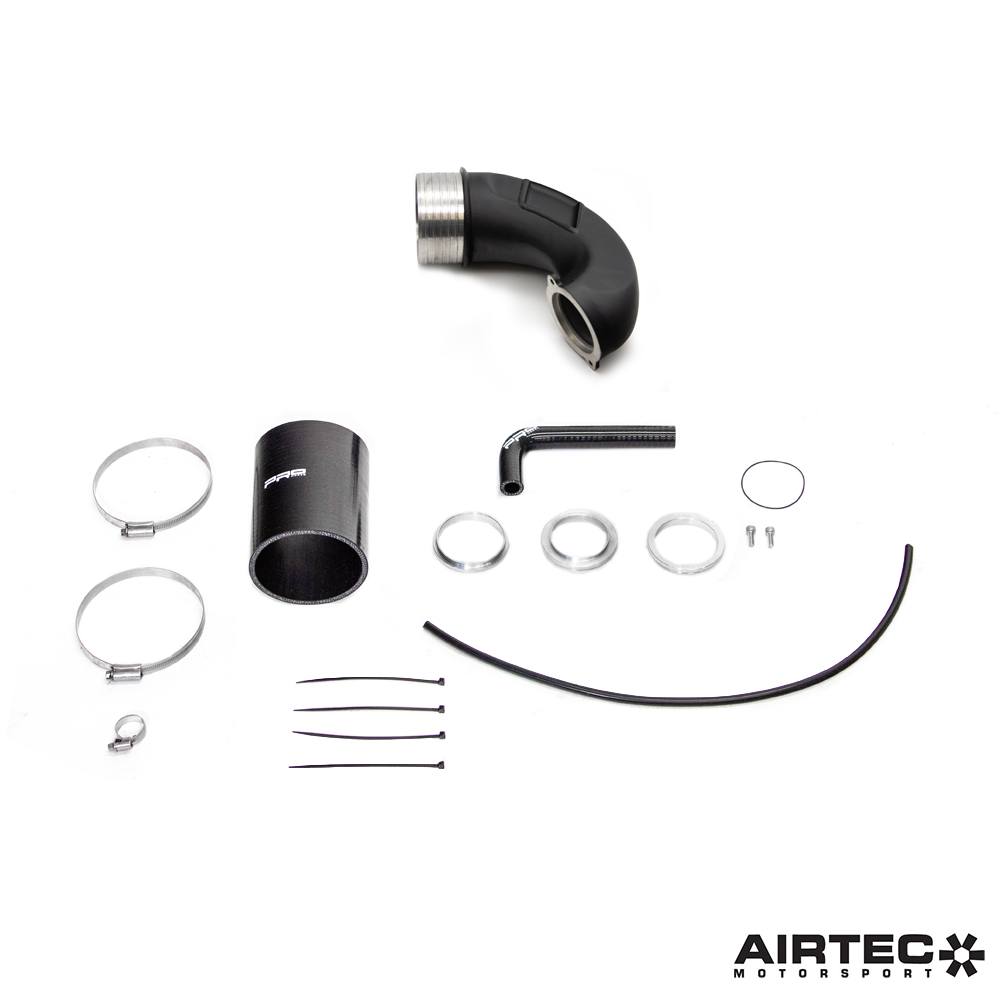

The elbow comes with detailed fitting instructions and is designed to work with both standard turbos and various types of hybrid turbos, thanks to a range of machined flanges (62.8mm and 65.7mm) that come with the kit. The comprehensive package also includes a Pro Hoses replacement silicone breather hose and vacuum line, a new O-ring and all fixtures and fittings required for installation.

Finished in powder coated black with a AIRTEC Motorsport cast logo, these uprated elbows offer a great benefit for modified RS3 8V owners.

Will also fit Audi TTRS (8S) and RS3 (8V and 8Y) 2017 onwards.

Features:

Huge 62.5% increase in internal capacity
30% larger internally on average compared to original
Smooth angle design to improve flow
Improves throttle response and reduces restriction
High-quality cast aluminium construction
Works with both standard turbos and various hybrid turbos
Available for both Left-Hand and Right-Hand Drive
Powder coat black finish
Direct replacement part
Comprehensive fitting guide included
AIRTEC Part No: ATMSVAG14

Quantity: 1
Check stock
Please use the live chat to check stock levels
Hassle free returns
14 day returns
Secure & Flexible Payments
Secure payment with multiple finance options
Earn reward points on this item
349 points

TECHNICAL DATA

As part of our expanding Audi product range, AIRTEC Motorsport are proud to launch our cast turbo elbow for the RS3 8V kit for fast road or track use.

The bottle neck of the 2.5 TFSI engine is the turbo elbow, which reduces down in diameter massively as it passes down behind the engine to the turbo. Our approach to improving this focused on making the very most of the available space and as a result, our in-house design engineer team were able to create an elbow design that is unrivalled on the market for it’s increase in diameter and improvement in flow.

Featuring a 4″/102mm inlet, the elbow gently tapers down with no aggressive step to ensure optimum flow from start to finish with a substantially increased volume over standard. As a result, the AIRTEC Motorsport enlarged elbow measures a huge 8,171mm² at its widest cross-sectional measurement, compared to the original pipe’s 5,026mm² at its widest point, therefore offering a huge increase of 62.5%. On average, it’s 30% larger internally compared to the standard elbow, offering a huge increase in capacity. This improves throttle response and reduces restriction, which is key for those chasing increased power from their cars.

A direct replacement part, the elbow is made from high-quality cast aluminium and has been designed to work with other our own AIRTEC Motorsport induction it (similar sized induction kits should also fit). To fit the right-hand drive models, an indentation has been introduced to allow clearance for the brake master cylinder.

The elbow comes with detailed fitting instructions and is designed to work with both standard turbos and various types of hybrid turbos, thanks to a range of machined flanges (62.8mm and 65.7mm) that come with the kit. The comprehensive package also includes a Pro Hoses replacement silicone breather hose and vacuum line, a new O-ring and all fixtures and fittings required for installation.

Finished in powder coated black with a AIRTEC Motorsport cast logo, these uprated elbows offer a great benefit for modified RS3 8V owners.

Will also fit Audi TTRS (8S) and RS3 (8V and 8Y) 2017 onwards.

Features:

Huge 62.5% increase in internal capacity
30% larger internally on average compared to original
Smooth angle design to improve flow
Improves throttle response and reduces restriction
High-quality cast aluminium construction
Works with both standard turbos and various hybrid turbos
Available for both Left-Hand and Right-Hand Drive
Powder coat black finish
Direct replacement part
Comprehensive fitting guide included
AIRTEC Part No: ATMSVAG14

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
