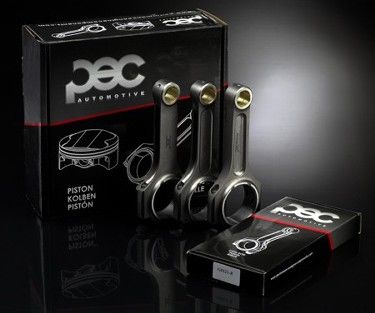

CLEARANCE - Corsa D / E VXR PEC H-Beam Forged Conrods --Z16 / A16 LER

Regular price
£375.00
Sale price
£375.00
Regular price
£529.00
Length C/C 129.70mmSmall End Diameter 19.00mmSmall End Width 20.00mmBig End Diameter 46.00mmBig End Width 21.85mm PEC rods are d...  Read more

Length C/C 129.70mm
Small End Diameter 19.00mm
Small End Width 20.00mm
Big End Diameter 46.00mm
Big End Width 21.85mm

PEC rods are designed to withstand roughly 225hp per cylinder (typically 900hp on most 4cyl engines) and on the ARP 2000 series 3/8 bolts normally provided & have an 8,500 RPM safe operating limit (engine specific).

In some cases, we reccomend using the ARP custom age bolts available from us. This increases the hp threshold to 250hp per cylinder and raises the RPM limit to 9,000 however as every engine is different, these numbers are not guaranteed for every configuration.

Prolonged high RPM's for drifting, or sudden bursts of torque for drag racing (as two examples) will warrant the use of the custom age bolts to help retain the clamping force between the big end cap and the connecting rod.

PEC's own in house design facilities are able to create many different components but for nearly 10 years now, it's our connecting rods that have helped set us apart from the competition in terms of availability, ease of fitment and size of range.

Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.

H-Beam and I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.

PEC Connecting rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike and their success record speaks for itself.

Quantity: 1
Check stock
Please use the live chat to check stock levels
Hassle free returns
14 day returns
Secure & Flexible Payments
Secure payment with multiple finance options
Earn reward points on this item
375 points

Length C/C 129.70mm
Small End Diameter 19.00mm
Small End Width 20.00mm
Big End Diameter 46.00mm
Big End Width 21.85mm

PEC rods are designed to withstand roughly 225hp per cylinder (typically 900hp on most 4cyl engines) and on the ARP 2000 series 3/8 bolts normally provided & have an 8,500 RPM safe operating limit (engine specific).

In some cases, we reccomend using the ARP custom age bolts available from us. This increases the hp threshold to 250hp per cylinder and raises the RPM limit to 9,000 however as every engine is different, these numbers are not guaranteed for every configuration.

Prolonged high RPM's for drifting, or sudden bursts of torque for drag racing (as two examples) will warrant the use of the custom age bolts to help retain the clamping force between the big end cap and the connecting rod.

PEC's own in house design facilities are able to create many different components but for nearly 10 years now, it's our connecting rods that have helped set us apart from the competition in terms of availability, ease of fitment and size of range.

Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.

H-Beam and I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.

PEC Connecting rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike and their success record speaks for itself.

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
