Forge Motorsport Recirculation Valve and Kit for Audi and VW 1.8 and 2.0 TSI/TFSI
- Regular price
- £230.00
- Sale price
- £230.00
- Regular price
-
Product Description
Forge Motorsport is proud to release the latest version of our very popular solenoid driven valve for the 2013-on VAG 1.8 TSI/TFSI engine (US codes CPKA and CPRA) and 2.0 TSI/TFSI engine (Euro code CNTA, CHHA, CHHB, CJXB, CZPA, and CJXC;US codes CPLA and CPPA) including Golf MK7 R
This valve is fully engineered to remedy the failure issues experienced with the OEM solenoid valves when their diaphragm may rupture which results in a boost leak. The later revision OEM valves have a longer lift but ultimately the plastic brittles and in extreme circumstances, parts of the plastic can break off. Our valve uses full billet alloy construction with a piston based internal design that provides for significantly improved reliability over the OEM valves along with lightning fast response. It has also been proven in cars running over 600bhp!

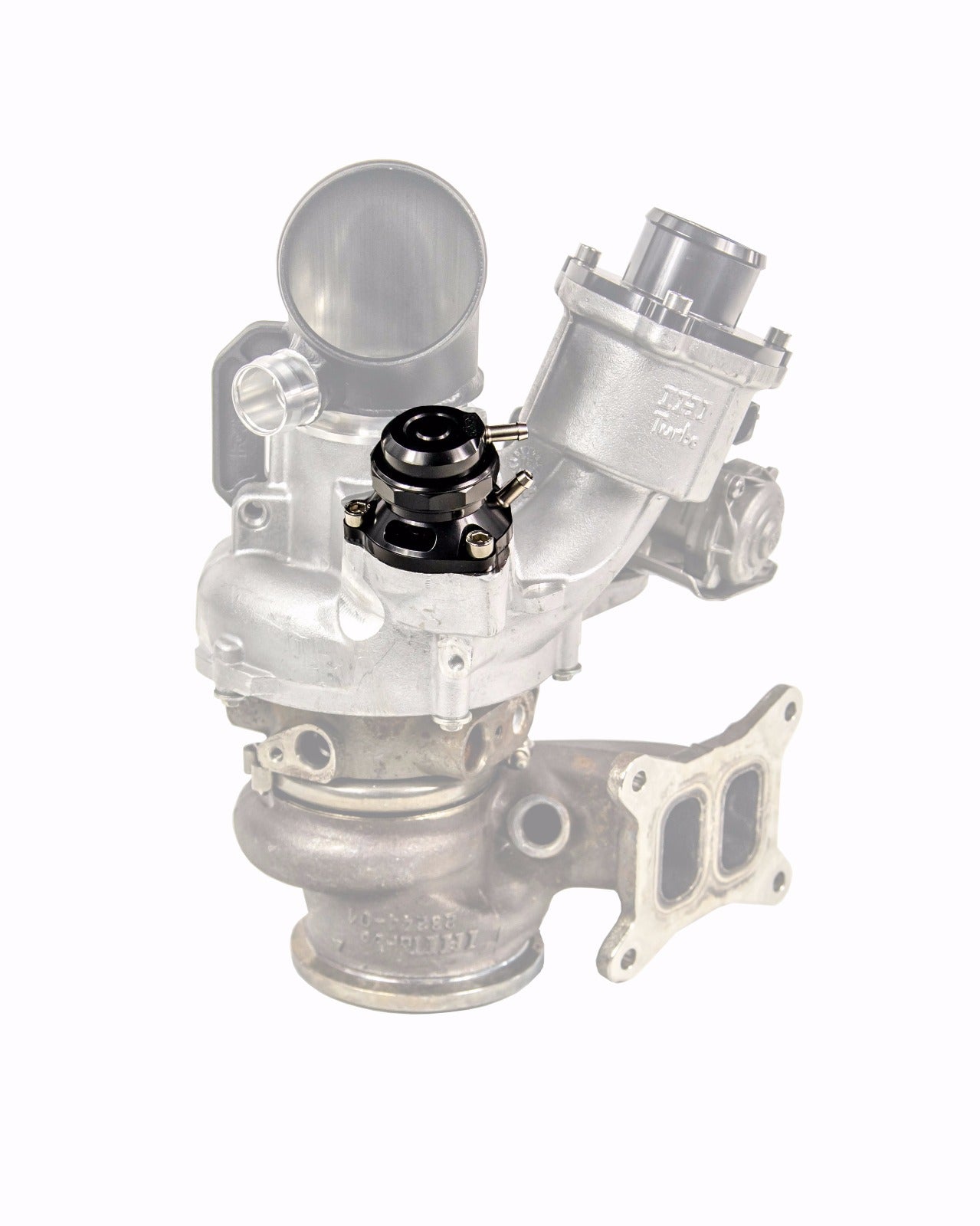

This new valve has a very short overall installed height, which enables fitment of this atmospheric valve into the tight space between the turbo and the inlet hose from the airfilter, older larger valves and sandwich plates will not fit this engine.

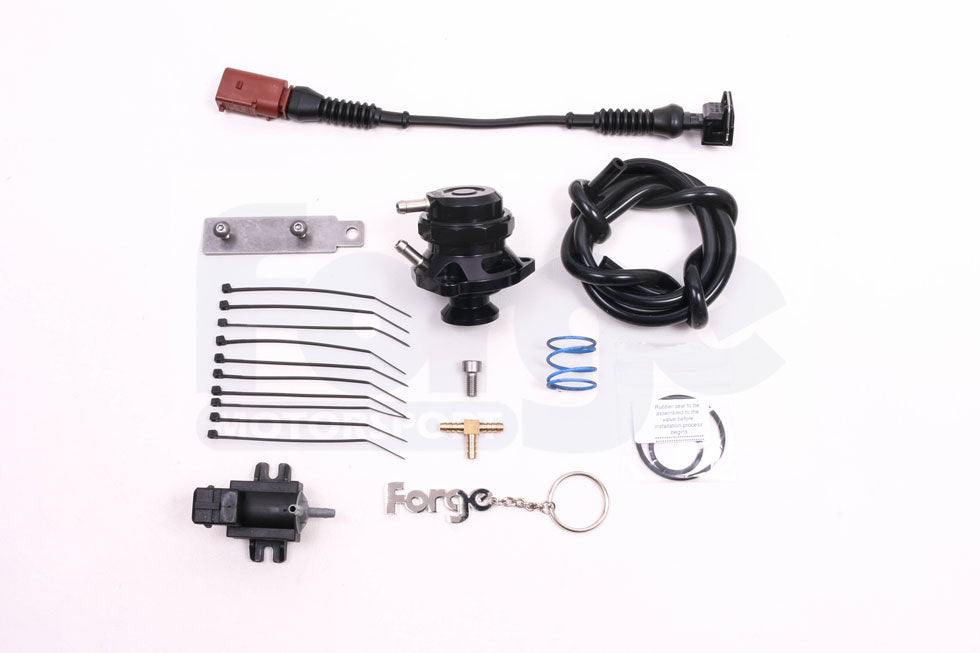

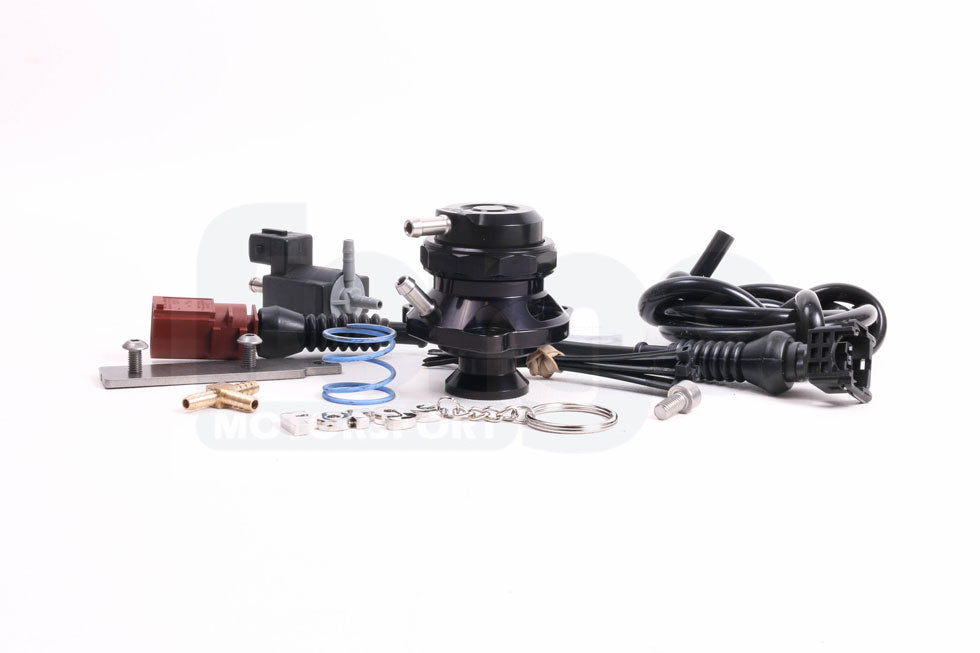

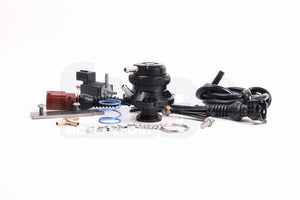

In The Box:
- 1 x FMDVMK7R Valve
- 1 x Wiring Harness
- 1 x Solenoid, Bracket, and Screws
- 1 x Uprated Blue Spring
- 10 x Cable Ties
- 1 x 1000mm of 4mm Vacuum Tube
- 1 x 5mm T Piece
- 1 x Instructions
- 1 x Forge Keyring and Sticker
Compatible Vehicles
Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.
Warranty Information
The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Product Description
Forge Motorsport is proud to release the latest version of our very popular solenoid driven valve for the 2013-on VAG 1.8 TSI/TFSI engine (US codes CPKA and CPRA) and 2.0 TSI/TFSI engine (Euro code CNTA, CHHA, CHHB, CJXB, CZPA, and CJXC;US codes CPLA and CPPA) including Golf MK7 R
This valve is fully engineered to remedy the failure issues experienced with the OEM solenoid valves when their diaphragm may rupture which results in a boost leak. The later revision OEM valves have a longer lift but ultimately the plastic brittles and in extreme circumstances, parts of the plastic can break off. Our valve uses full billet alloy construction with a piston based internal design that provides for significantly improved reliability over the OEM valves along with lightning fast response. It has also been proven in cars running over 600bhp!
This new valve has a very short overall installed height, which enables fitment of this atmospheric valve into the tight space between the turbo and the inlet hose from the airfilter, older larger valves and sandwich plates will not fit this engine.
In The Box:
- 1 x FMDVMK7R Valve
- 1 x Wiring Harness
- 1 x Solenoid, Bracket, and Screws
- 1 x Uprated Blue Spring
- 10 x Cable Ties
- 1 x 1000mm of 4mm Vacuum Tube
- 1 x 5mm T Piece
- 1 x Instructions
- 1 x Forge Keyring and Sticker
Compatible Vehicles
Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.
Warranty Information
The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.
Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
