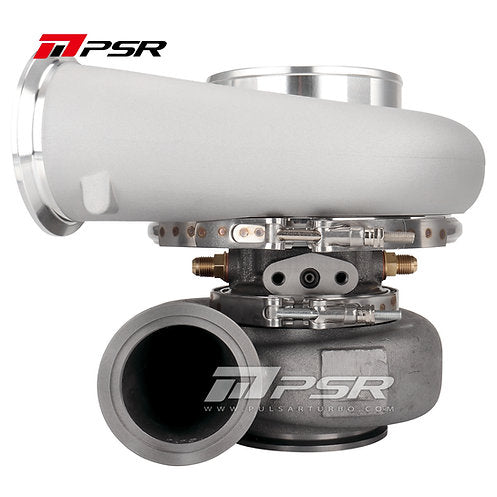

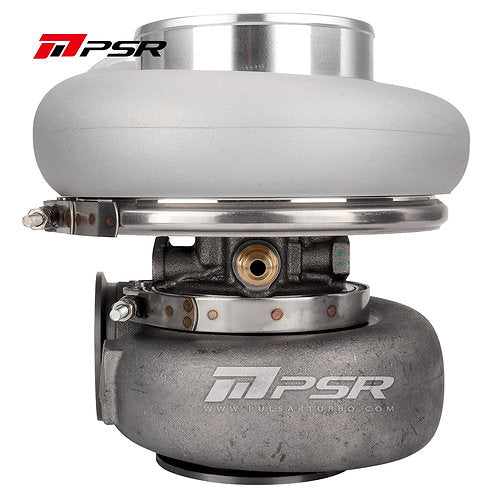

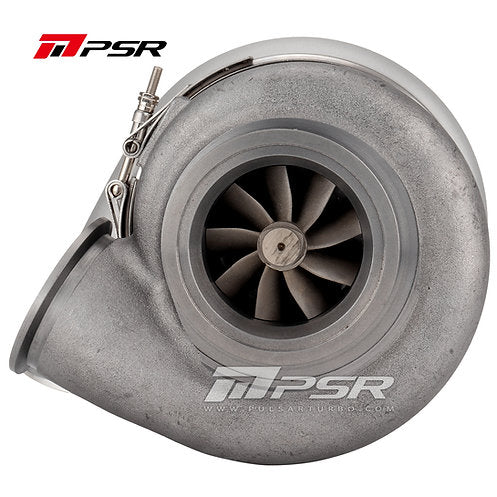

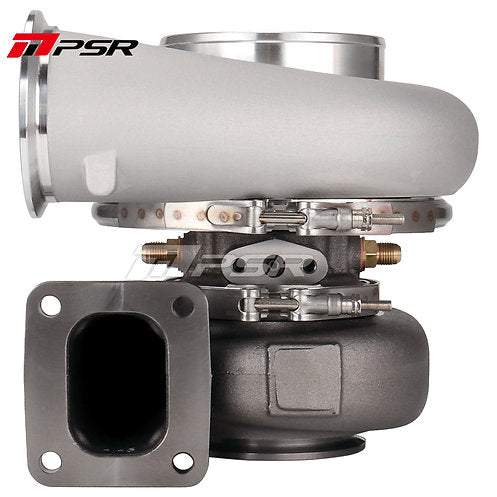

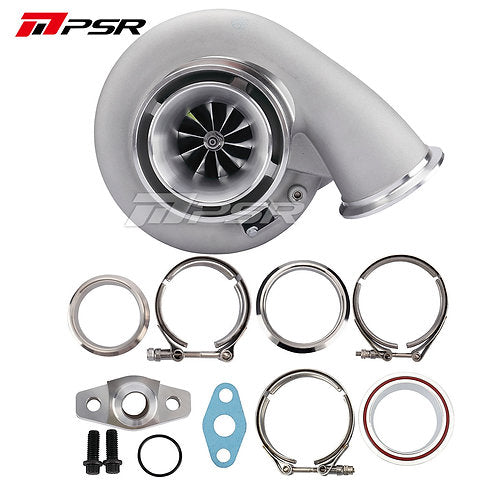

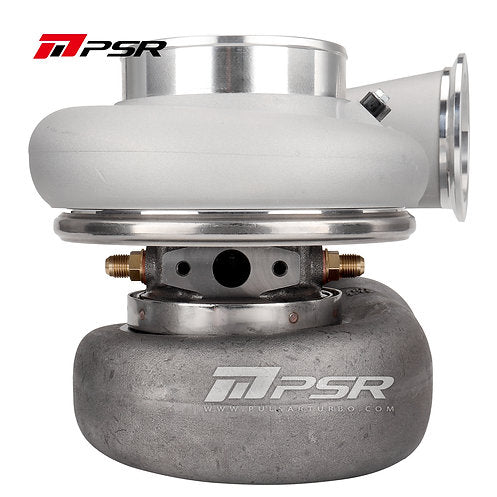

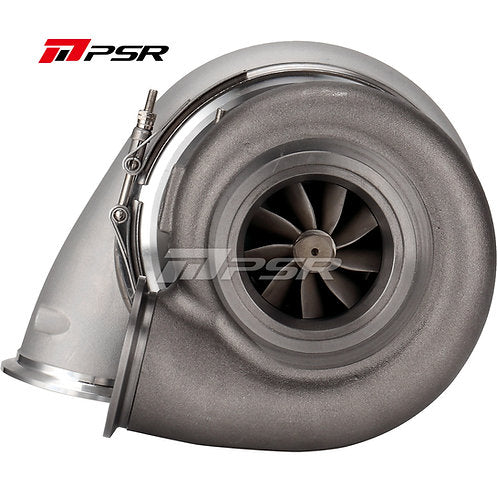

PSR Class Legal 6775G

PSR Class Legal 6775G

• Please note, T51R housing option requires an extra 7 days handling time
• PSR Class Legal Turbo with 67/98mm Compressor wheel
• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
• 7 Turbine housing options available

SPEC

• -Compressor Wheel: 67*98mm

  -Turbine Wheel: 82*75mm

  -Compressor Inlet: 5″ Hose

  -Compressor Outlet: 3″ V-Band

  -Turbine Inlet: 3″ V-Band

  -Turbine Outlet: 3.5″ V-Band

  -Water Ports: -6AN

  -Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

  -Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

• A 4" turbine outlet adapter flange is also available , please contact us at time of ordering if this is required.

It's strongly recommended to run water cooling to aid reliability (needed for warranty)

Most Pulsar turbos have a dispatch time of 5-7 working days.

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
