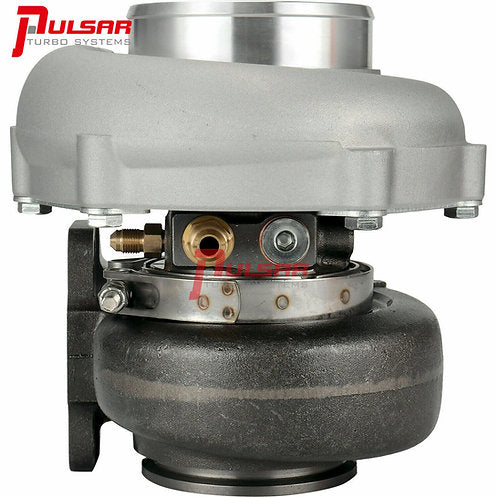

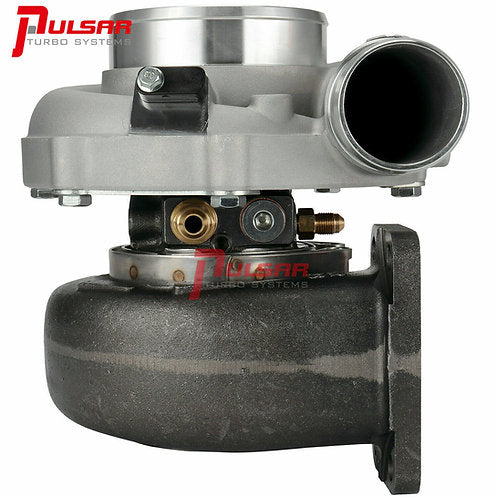

Pulsar PSR5855G / 30-770

Pulsar PSR5855G

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended displacement 2.0 to 3.5 litres with power outputs up to 770hp possible.
• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

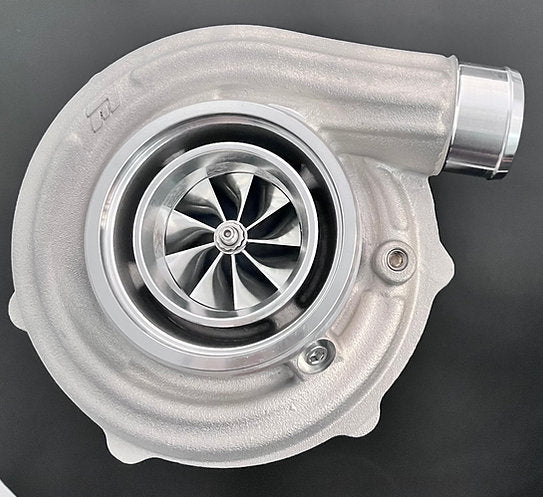

• 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

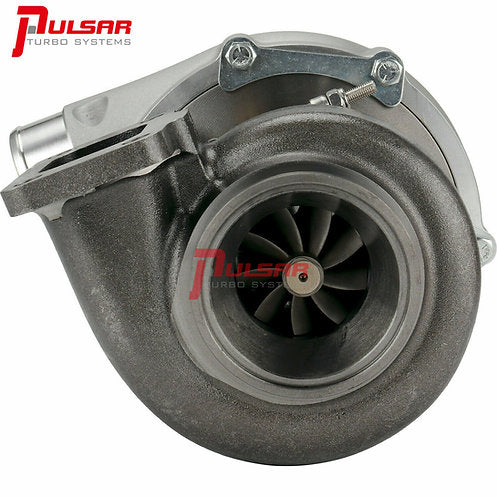

• 9 Blade G-Aero Inconel 713c Turbine Wheel

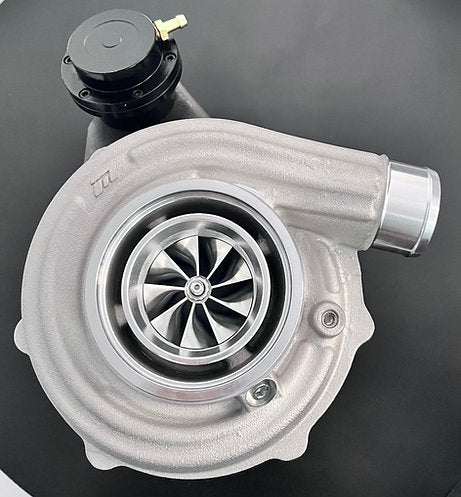

• Some IWG housing T flange options supplied with an adapter - please check images.
• Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

SPEC

Compressor Wheel: 58*71mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

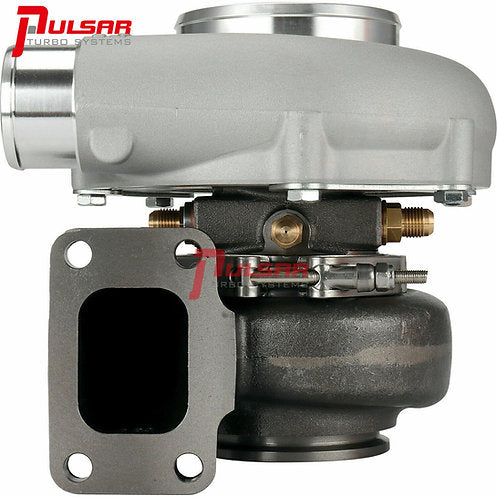

Turbine Inlet: T3 or T4

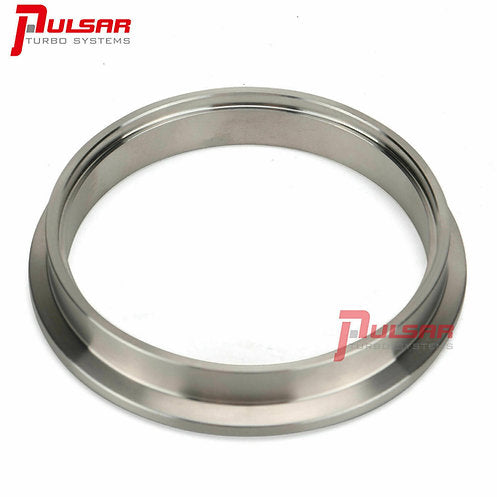

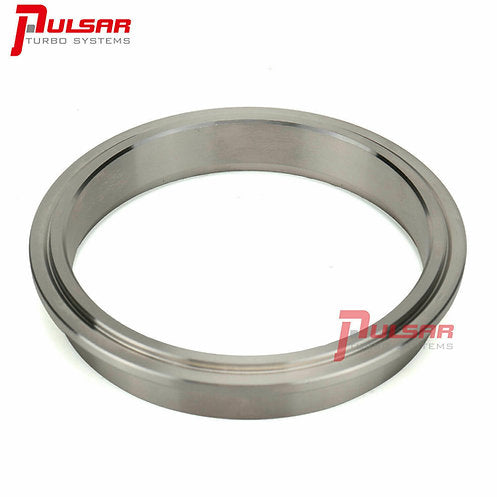

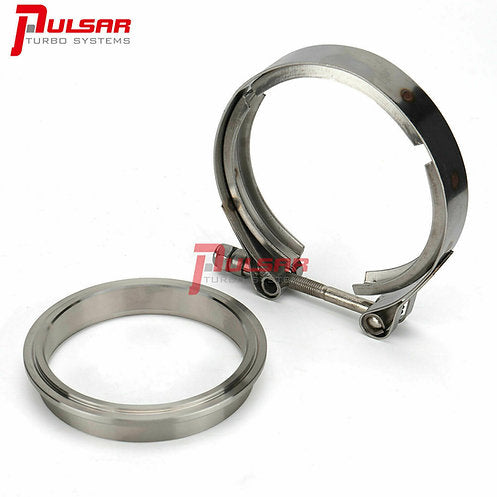

Turbine Outlet: 3″ V-Band

Water Ports: 2-M14 X 1.5

Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed

Oil Outlet: Std T3 Oil Drain Flange

It's strongly recommended to run water cooling to aid reliability

Most Pulsar turbos have a dispatch time of 5-7 working days.

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
