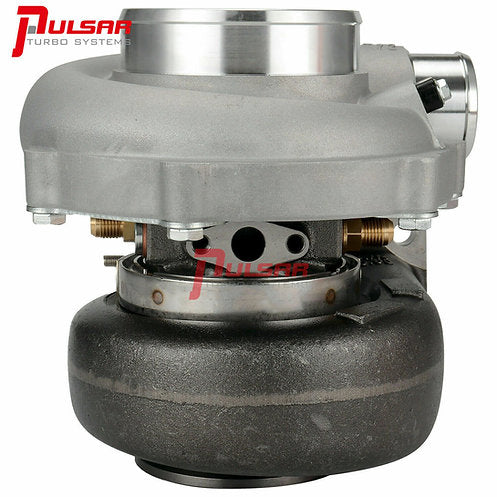

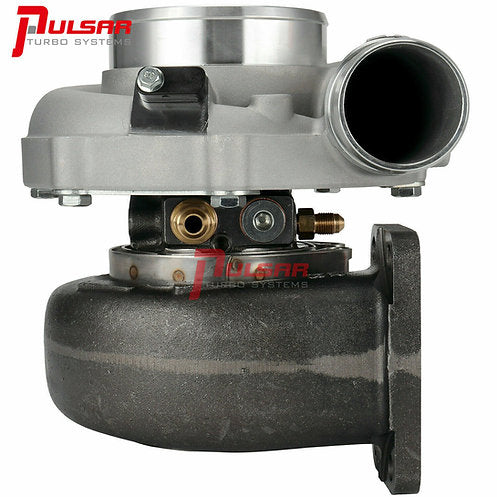

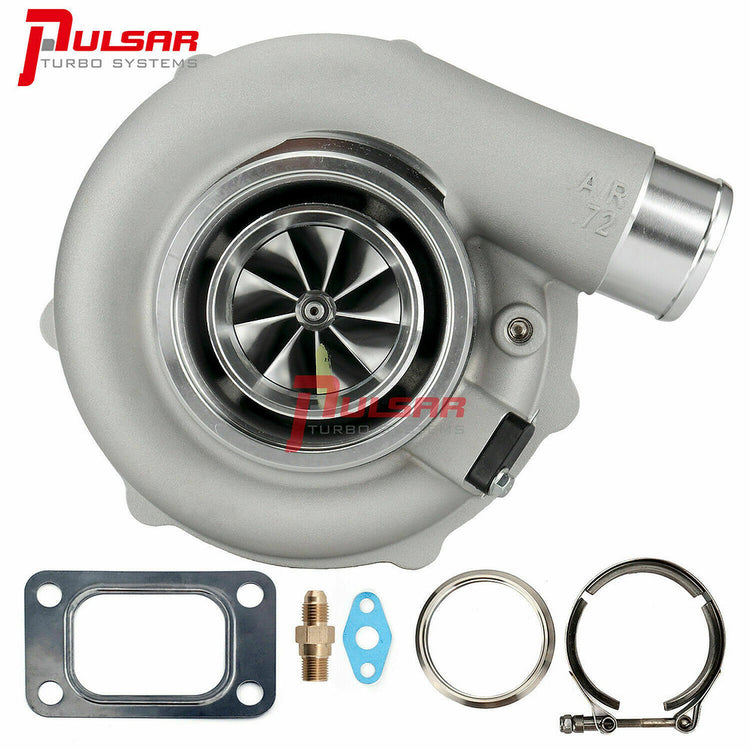

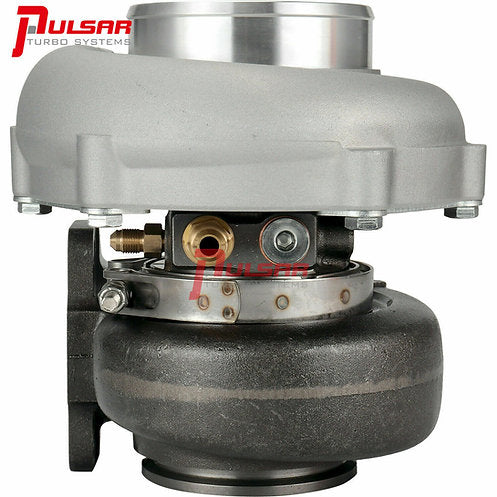

Pulsar PSR6255G / 30-900

Pulsar PSR6255G

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended displacement 2.0 to 3.5 litres with power outputs up to 900hp possible.
• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

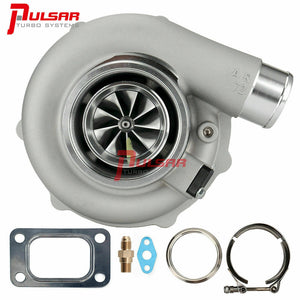

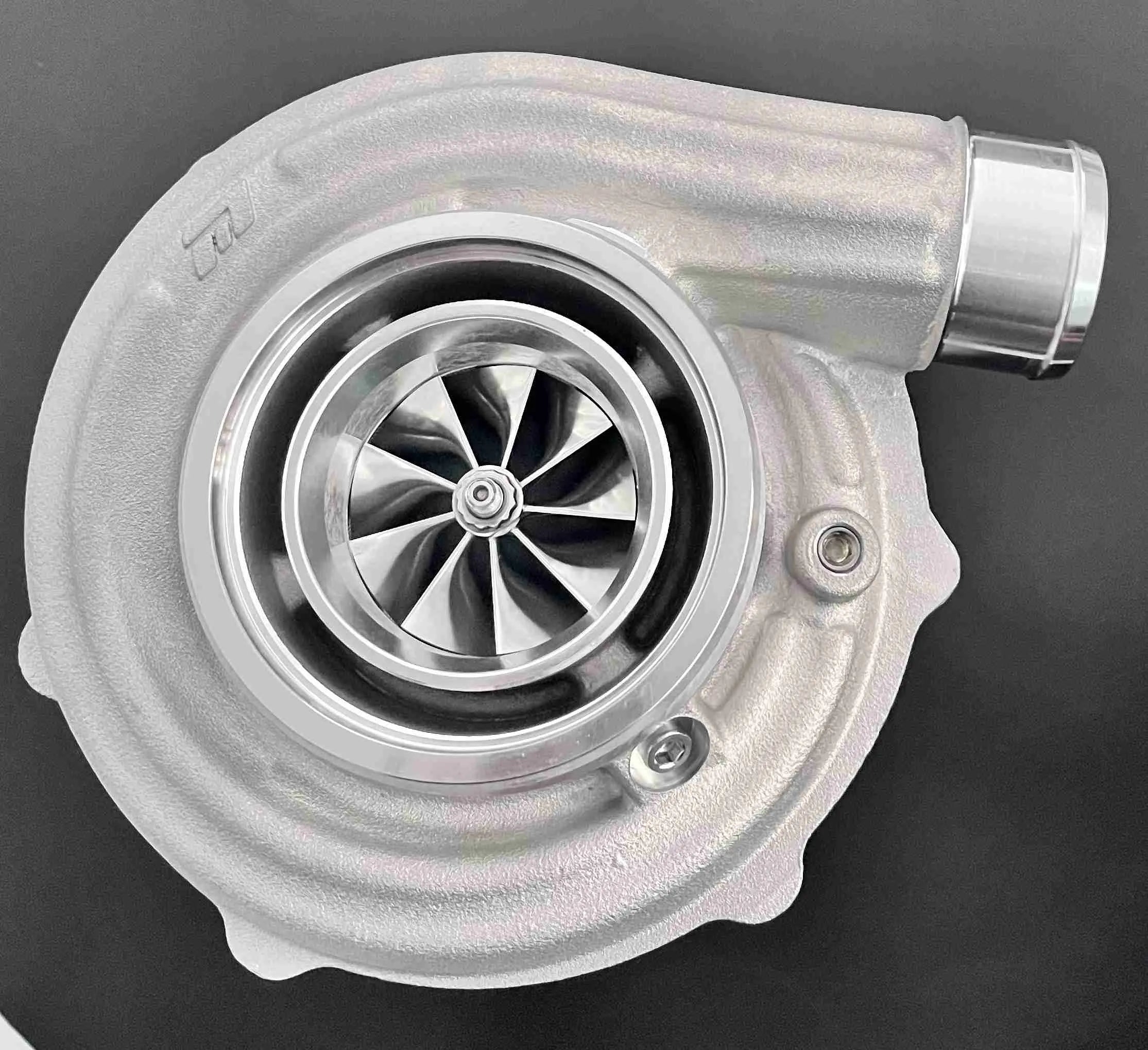

• 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

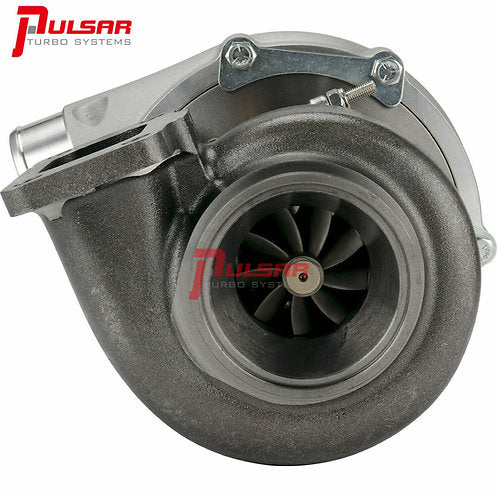

• 9 Blade G-Aero Inconel 713c Turbine Wheel
• T3 1.01 housing option comes with adapter as per image.
• Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

SPEC

• Compressor Wheel: 62*76mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2″ Hose

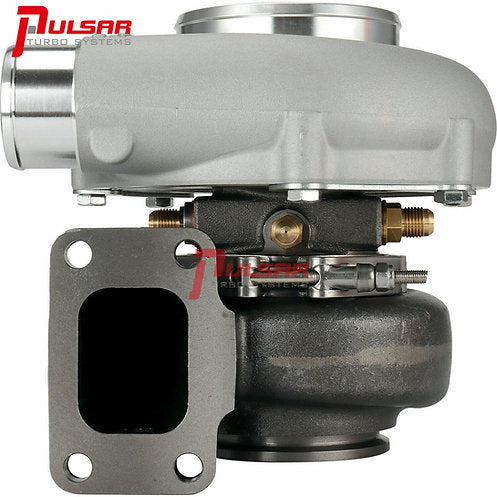

• Turbine Inlet: T3 or T4

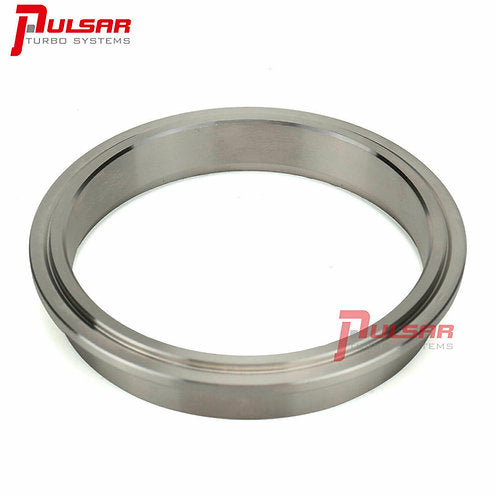

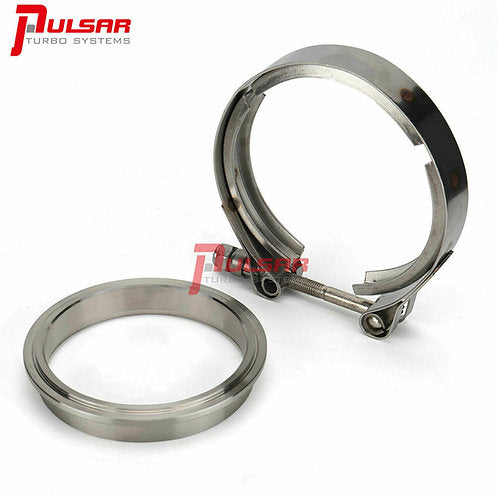

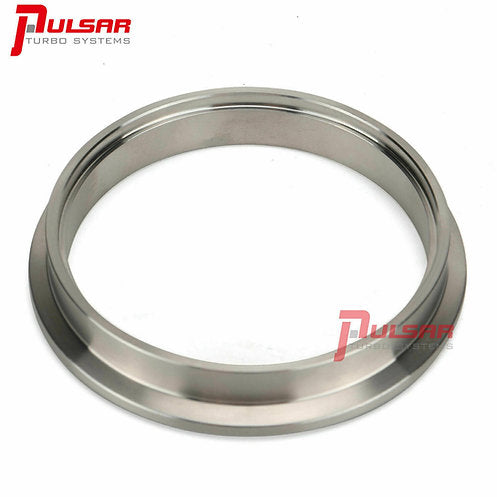

• Turbine Outlet: 3″ V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange

It's strongly recommended to run water cooling to aid reliability.

Most Pulsar turbos have a dispatch time of 5-7 working days.
