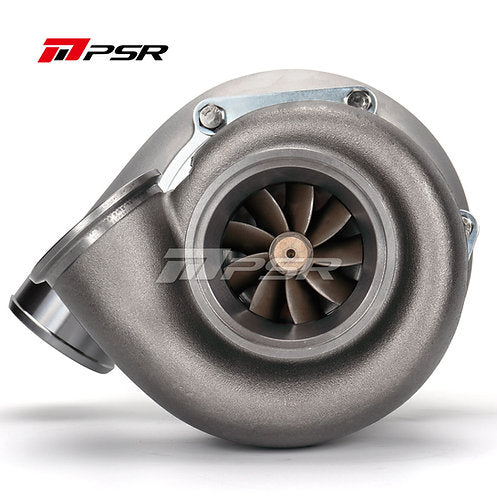

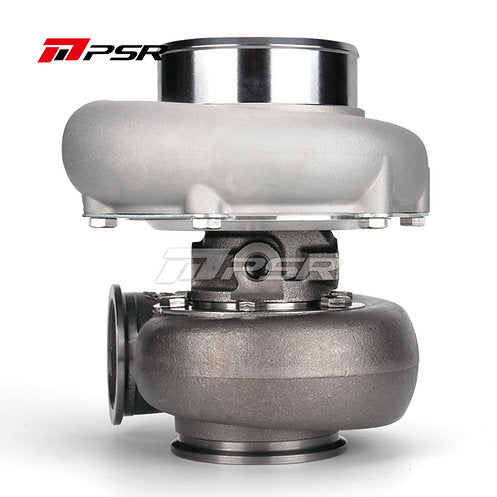

Pulsar GTX3584R Gen 3

Pulsar GTX3584R Gen 3

• Please note, T51R mod housings require an additional 7 days handling.
• Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible.
• Dual Ceramic Ball Bearing System

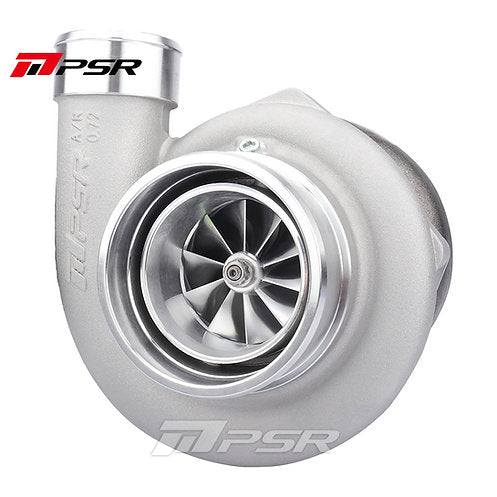

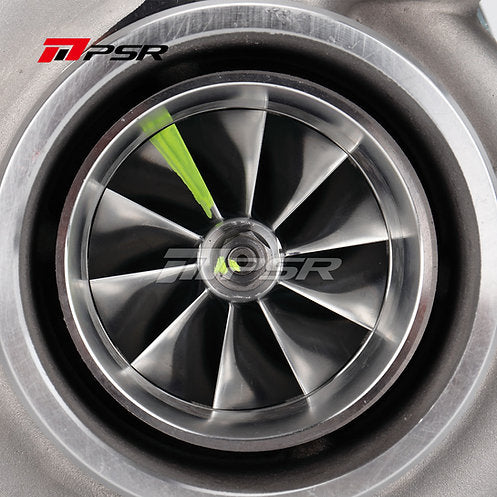

• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel for increased output

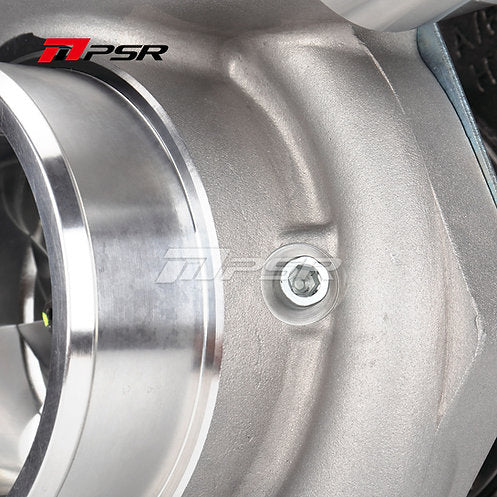

• Cover  with integrated  Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings available.

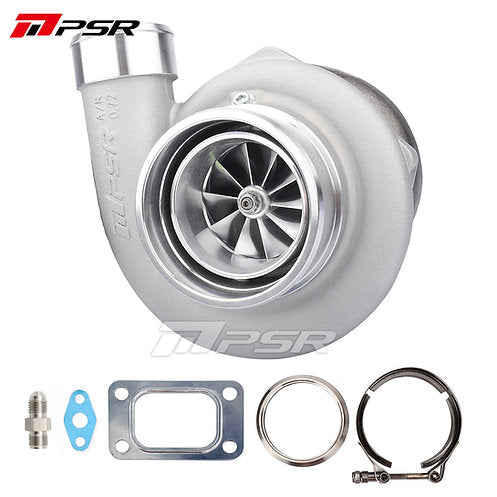

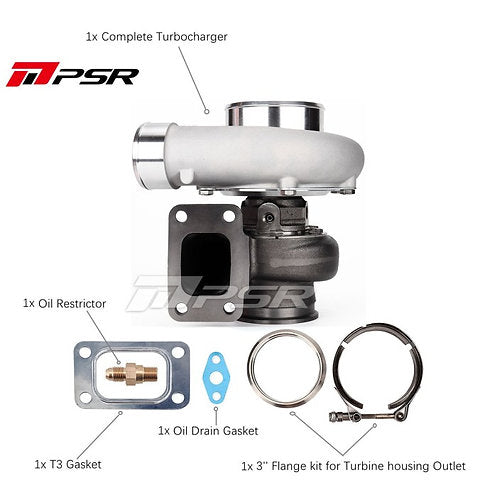

• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP

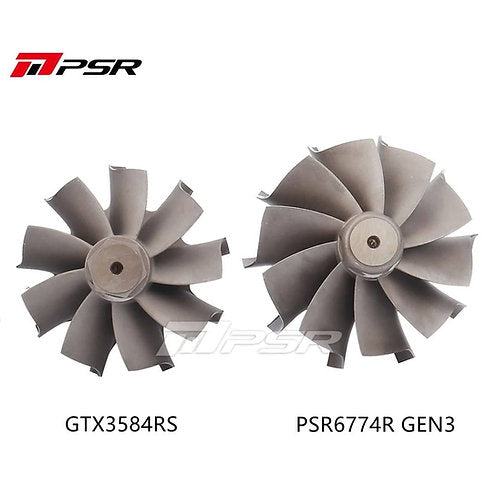

• Larger Turbine Wheel for Higher flow
• Approx 60 to 100 hp increase over Gen 2 version.

SPEC

• Compressor Wheel: 67*84mm

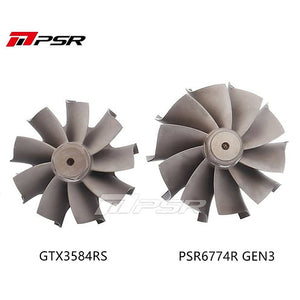

• Larger Turbine Wheel: 74*66mm
• Compressor Inlet: 4.0” Hose
• Compressor Outlet: 2.5” Hose

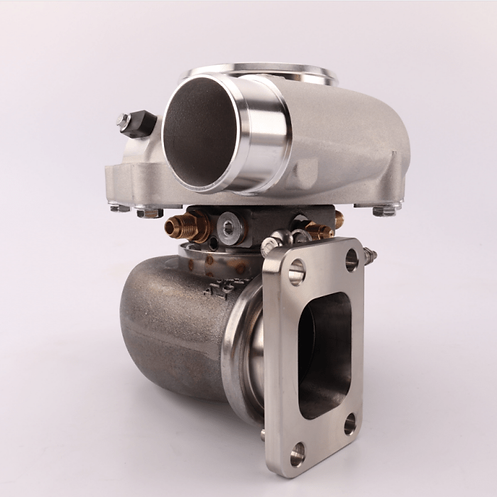

• Turbine Inlet: T3, T4, or 2.5″ V-Band

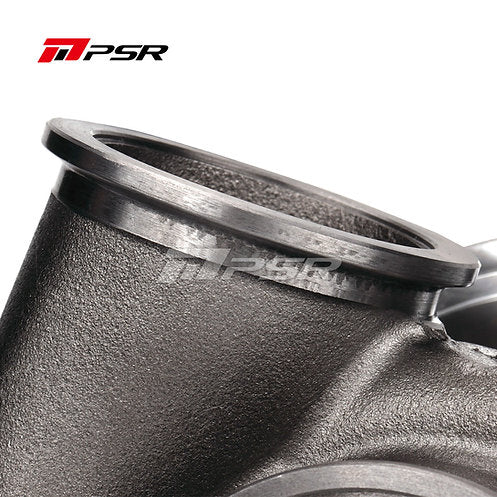

• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

It's strongly recommended to run water cooling to aid reliability.

Most Pulsar turbos have a dispatch time of 5-7 working days.

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
