Pulsar PSR6270G / 40-900
- Regular price
- £1,007.38
- Sale price
- £1,007.38
- Regular price
-

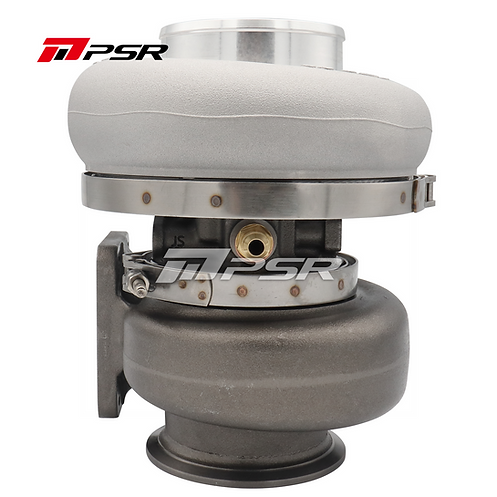

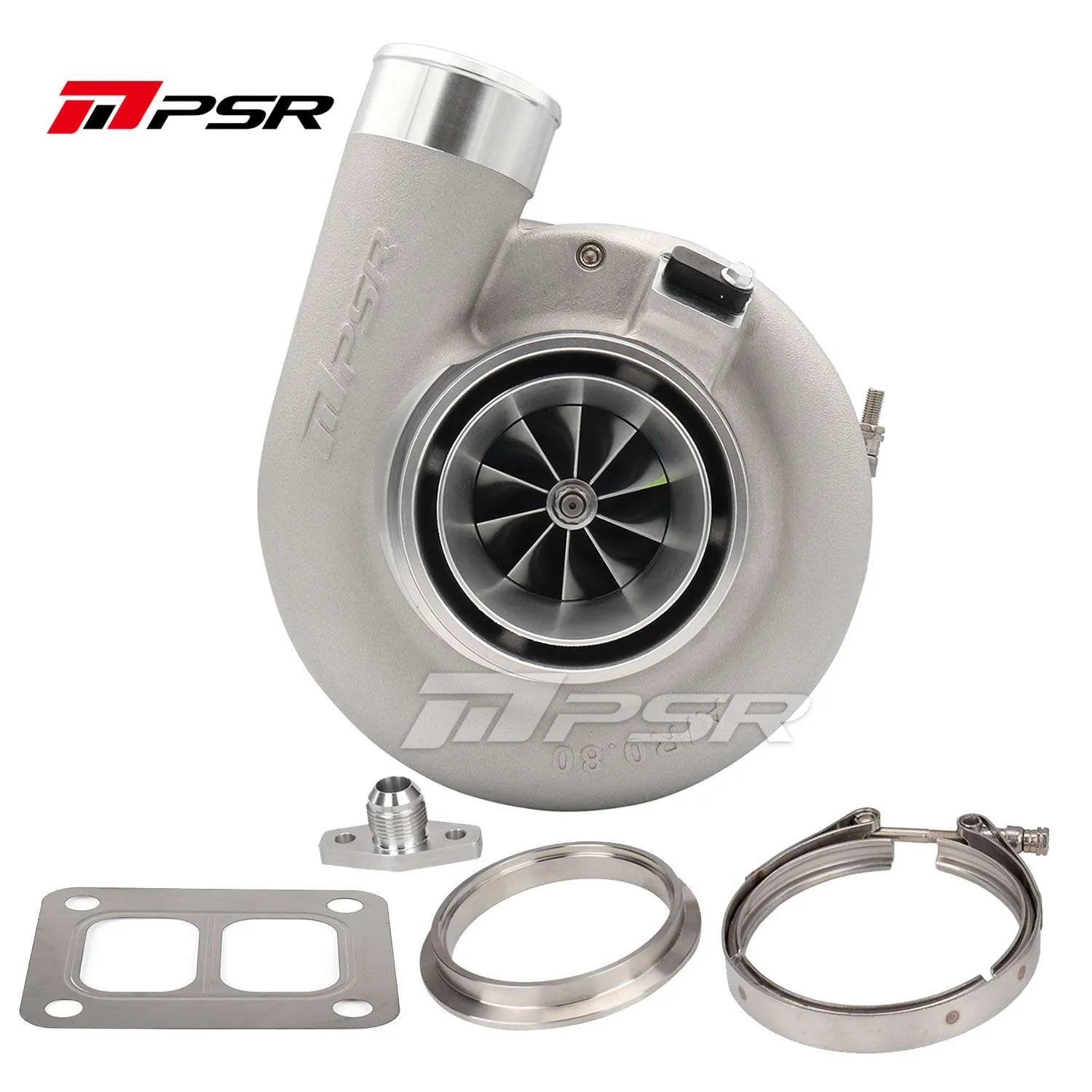

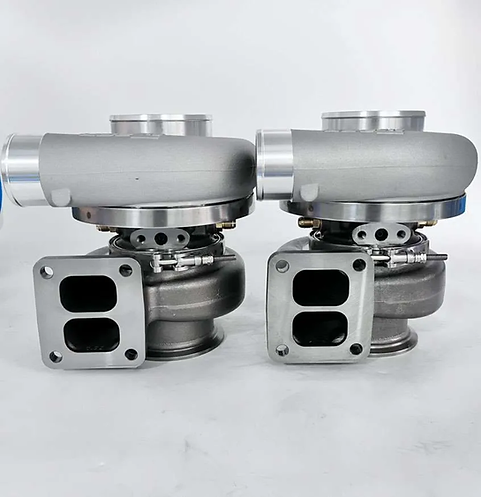

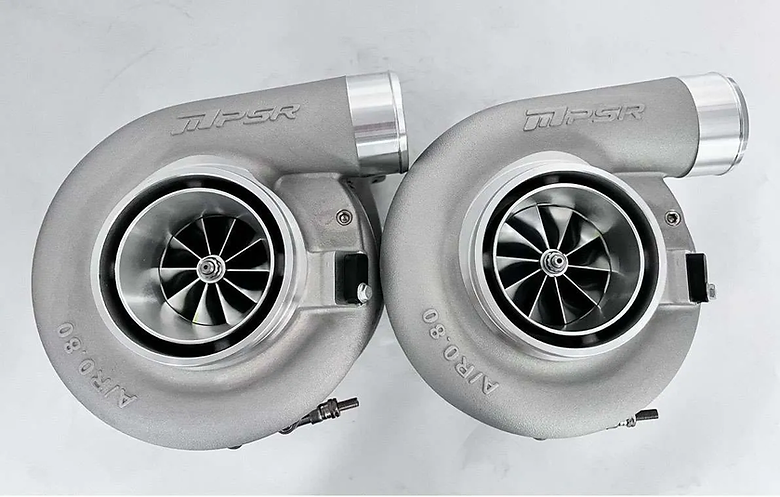

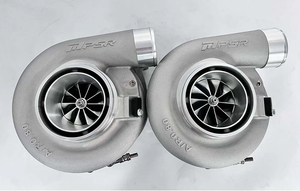

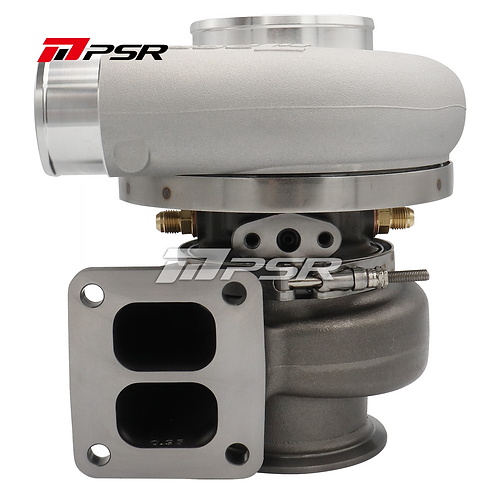

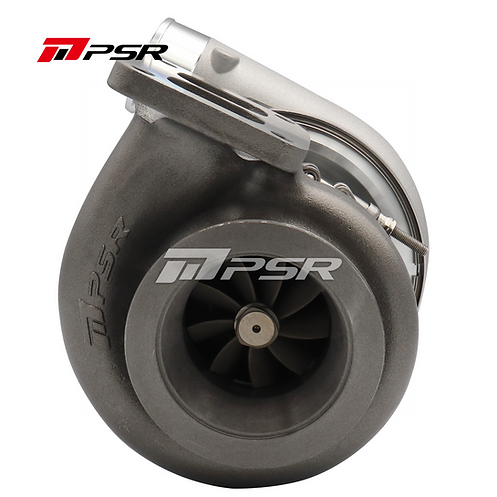

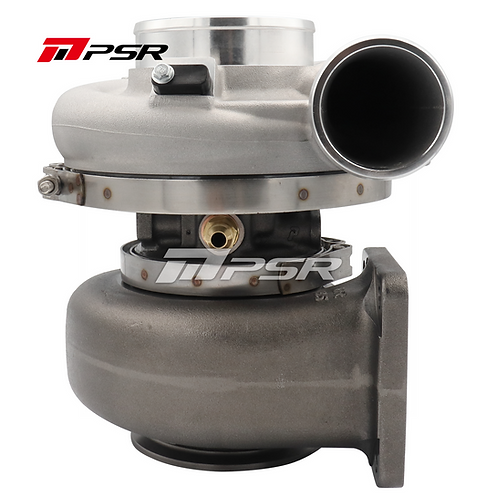

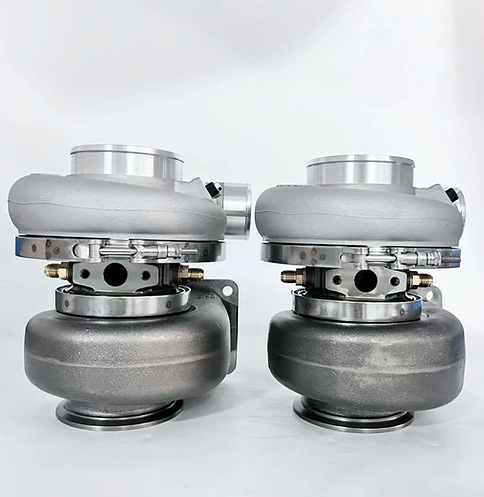

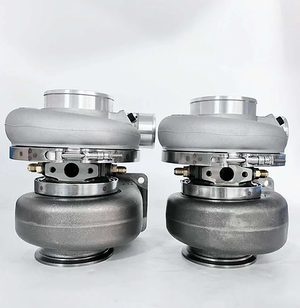

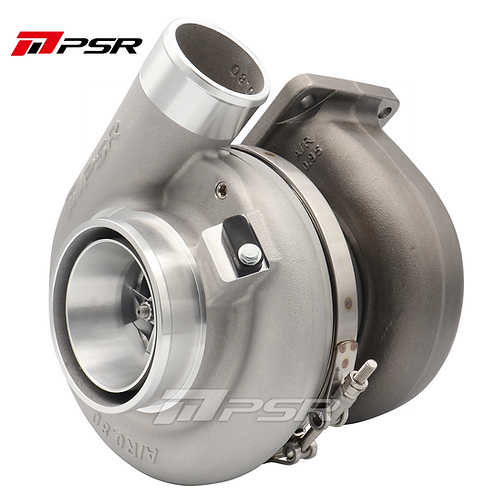

Pulsar PSR6270G Mid frame Turbo
Dual ceramic ball bearing with steel cage provides optimal turbo response &better durability by reducing shaft motion
62mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
9 Blade PTG-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, with integrated pressure and speed sensor ports.
Water fittings included
2 Turbine housing options available
HP rated at 900HP at the flywheel
Suitable engine size: 2.0-6.0L
Spec
Compressor Wheel: 62.7*88mm
Turbine Wheel: 77*70mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2.5″ V-Band
Turbine Inlet: T4 divided
Turbine Outlet: 4″ V-Band
Water Ports: -6AN
Oil Feed: Flange not supplied(Recommended size: -4AN Std T4 Flange )
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
Most Pulsar turbos have a dispatch time of 5-7 working days.











Pulsar PSR6270G Mid frame Turbo
Dual ceramic ball bearing with steel cage provides optimal turbo response &better durability by reducing shaft motion
62mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
9 Blade PTG-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, with integrated pressure and speed sensor ports.
Water fittings included
2 Turbine housing options available
HP rated at 900HP at the flywheel
Suitable engine size: 2.0-6.0L
Spec
Compressor Wheel: 62.7*88mm
Turbine Wheel: 77*70mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2.5″ V-Band
Turbine Inlet: T4 divided
Turbine Outlet: 4″ V-Band
Water Ports: -6AN
Oil Feed: Flange not supplied(Recommended size: -4AN Std T4 Flange )
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
Most Pulsar turbos have a dispatch time of 5-7 working days.
We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.
Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
