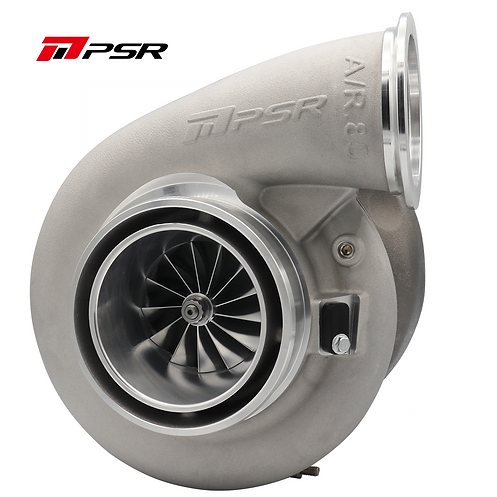

Pulsar PSR7782G / 45-1500

Pulsar PSR7782G

Please note, T51R housing option requires an extra 7 days handling time

Dual ceramic ball bearing system provides optimal turbo response &better durability by reducing the shaft-motion

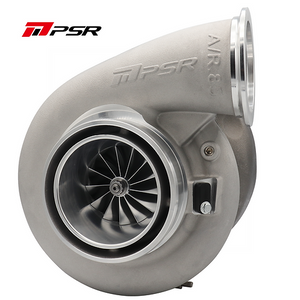

13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology

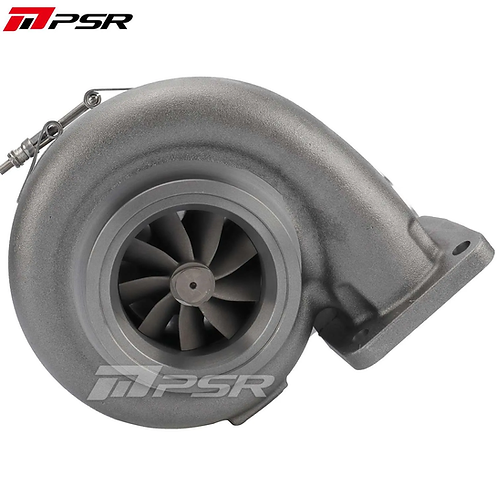

9 Blade PTG-Aero Inconel 713c turbine wheel

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports

Water fittings included with super core

8 Options in Turbine Housing

SPEC

Compressor Wheel: 76.6*109.2mm

Turbine Wheel: 89*81.6mm

Compressor Inlet: 5″ Hose

Compressor Outlet: 3″ V-Band

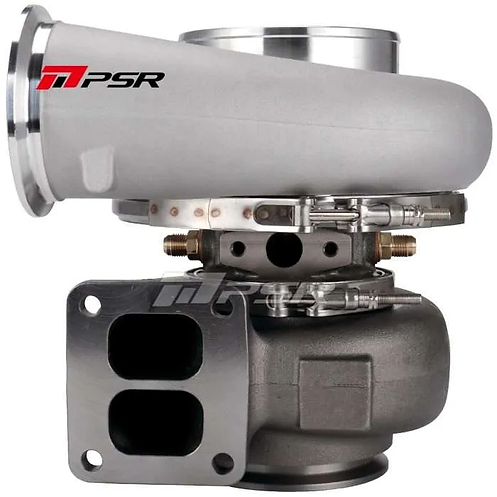

Turbine Inlet: 3″ V-Band/T4 open/ T4 divided

Turbine Outlet: 3.5″ V-Band

Water Ports: -6AN

Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

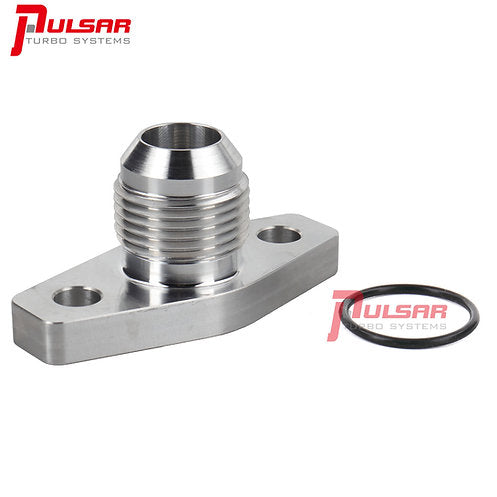

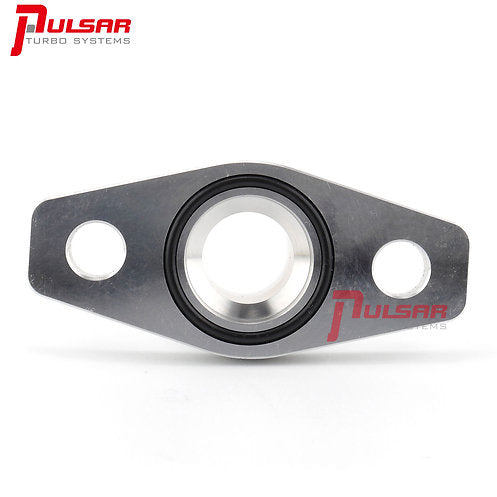

Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

It's strongly recommended to run water cooling to aid reliability (needed for warranty)

Most Pulsar turbos have a dispatch time of 5-7 working days.

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
