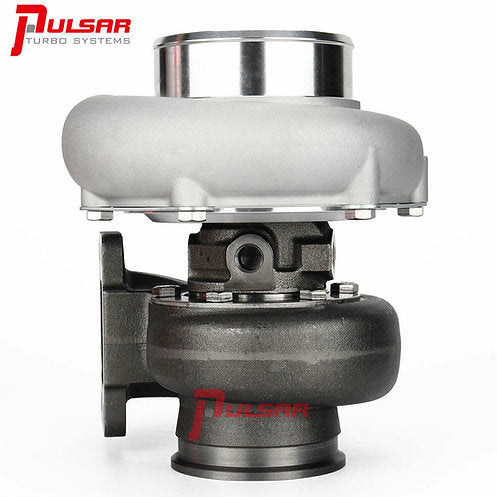

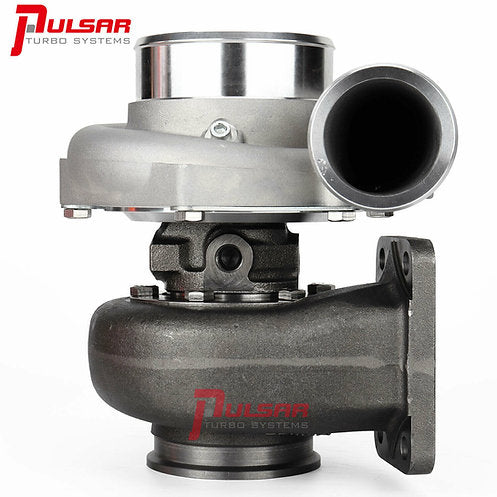

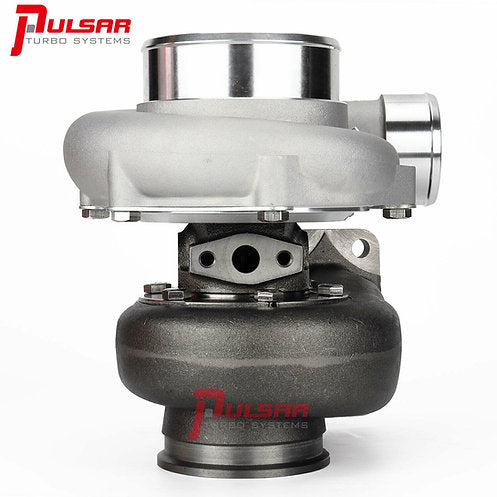

Pulsar PTX3584RS Gen 2

Pulsar PTX3584RS Gen 2

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible.

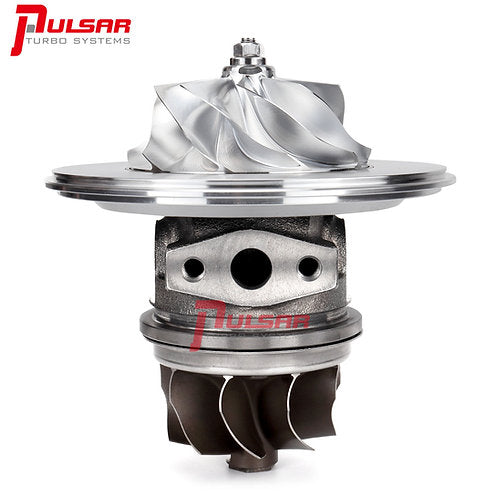

• ‘Dual ceramic ball bearing system-
• 67*84mm Billet compressor wheel-
• 68*62mm “RS” Gen2 turbine wheel
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housings available

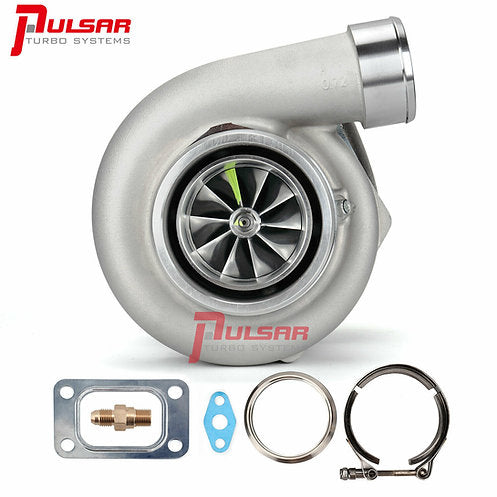

•  V-Band Flange kit(s) for the exhaust housing included

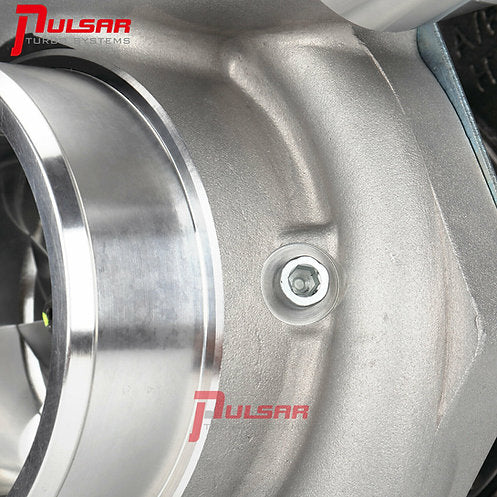

• Gen2 cover with integrated speed sensor port

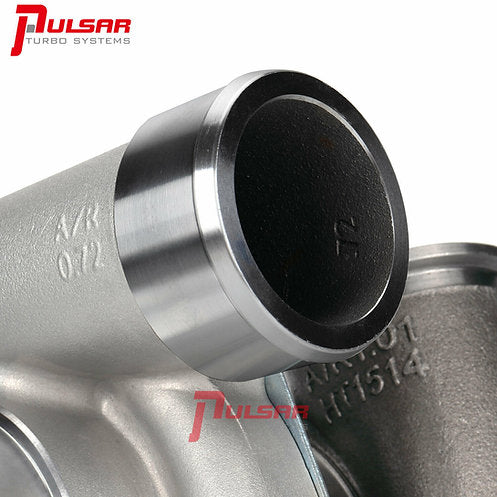

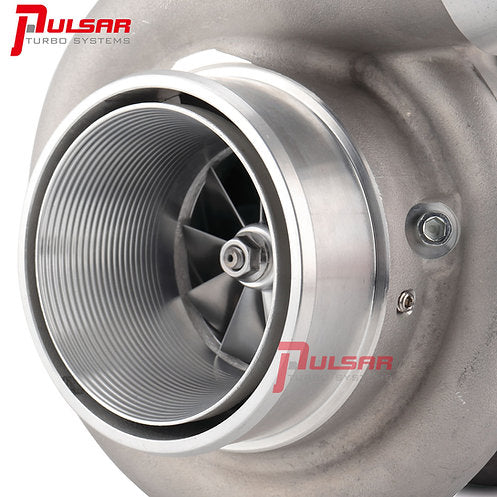

• Compressor Housing: 4′ inlet, 2.5” outlet, 0.72A/R, Anti-surge

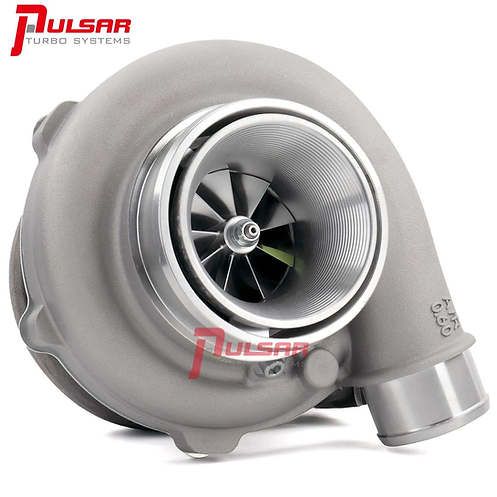

• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

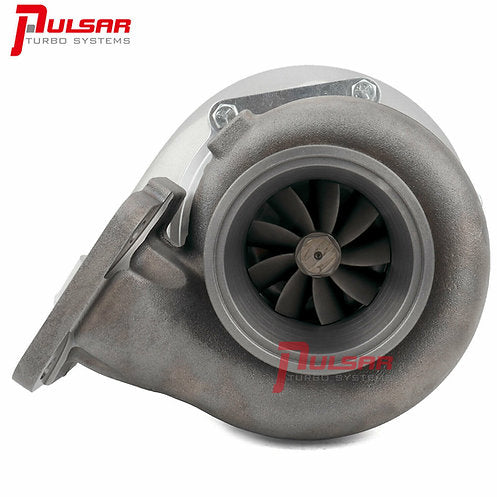

• Inconel 713c Gen2 9 Blade Turbine Wheel
• SPEC
• Billet Compressor Wheel: 67.3/84.4, 10+0 Blades;
  Compressor Housing: 4'' inlet, 2.5'' outlet, 0.72 A/R, Anti-surge;
  Turbine Wheel: 68/62.3mm; (“RS” blade profile)

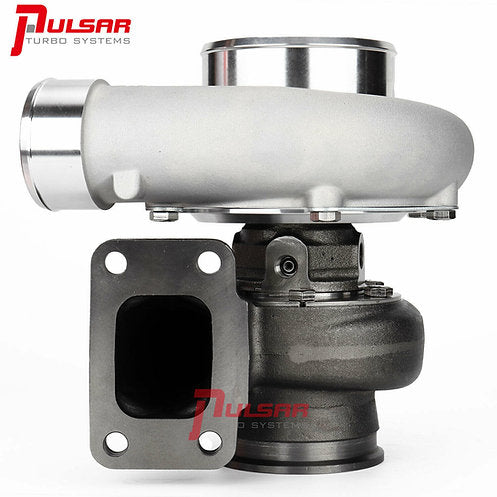

  Turbine Housing: T3 inlet, V band outlet, 0.82 A/R;
  Turbine housing Outlet flange&clamp fit: 3'' OD tubing, slip on & weld.

It's strongly recommended to run water cooling to aid reliability.

Most Pulsar turbos have a dispatch time of 5-7 working days.

We keep a large inventory of stock at our warehouse however due to widespread delays in the industry, some items may be on backorder. If you need parts ASAP then please contact us on the live chat or at support@wayside-performance.co.uk and a member of our team will get back to you.

Unsure on fitment? Just drop us a message on the live chat or support@wayside-performance.co.uk and a member of our team will assist. Please make sure to include as much detail as possible including make, model, registration and the parts you are looking at.
